Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11234861 Assembly, Cover Plate (charcoal Sparkle)   (Replaces: W10823656) In-Stock Immediately $ 182.45

2 W11679634 Cap, Water Filter (grey)   (Replaces: W10813884) In-Stock Immediately $ 15.08

3 EDR2RXD1B Filter, Water   (Replaces: W10680605) In-Stock Immediately $ 49.99

4 W11233642 Clip   (Replaces: 2223913) Appelez-nous -
5 W11233370 Harness, Valve (also Order 2300868 - 5/16" Water Connector)   (Replaces: W10831294) Appelez-nous -
6 W11299812 Latch, Push   (Replaces: W11248444) Special Order $ 87.22

7 W11194438 Housing, Water Filter (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11165806) In-Stock Immediately $ 220.12

8 W11248061 Valve, Pilot (also Order 2300868 - 5/16" Water Connector)   (Replaces: W10870856) In-Stock Immediately $ 213.90

9 WPW10624574 Supply, Power   (Replaces: W10624574) In-Stock Immediately $ 231.58

10 W11234290 Assembly, Wifi Module (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11110768) Special Order $ 179.89

11 W11380825 Cord, Power   (Replaces: W10909588) Special Order $ 165.23

12 WP2203075 Spacer   (Replaces: 2203075) In-Stock Immediately $ 18.81

13 W11233373 Screw   (Replaces: W11168732) Appelez-nous -
14 W11248063 Assembly, Filter (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11040339) In-Stock Immediately $ 409.73

15 W11233371 Tube, Filter Inlet   (Replaces: W11050485) Special Order $ 121.21

16 W11247540 Mount, Filter   (Replaces: W10826558) Special Order $ 224.72

17 W11247543 Cover, Filter Mount   (Replaces: W10826572) Special Order $ 112.25

18 W11247538 Screw   (Replaces: W10882791) In-Stock Immediately $ 14.75

19 W11306696 Control, Electronic   (Replaces: W11043312) In-Stock Immediately $ 439.83

20 W11233638 Control, Electronic (led Driver)   (Replaces: W10909108) Special Order $ 433.11

21 W11304776 Harness, Hv   (Replaces: W10890822) Appelez-nous -
22 W11304777 Harness, Lv   (Replaces: W10890823) Appelez-nous -
23 W11302064 Tray , Control Board Mounting   (Replaces: W10910459) Appelez-nous -
24 W11302065 Lid, Cover   (Replaces: W10822213) Special Order $ 83.28

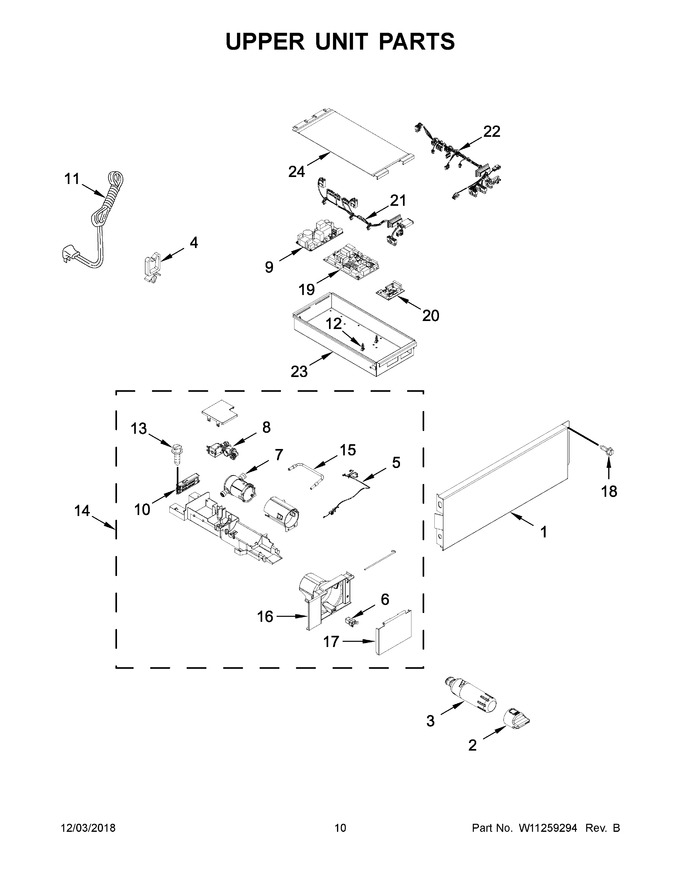

    View Diagram in Separate Window     Print Icon   Print Part List
