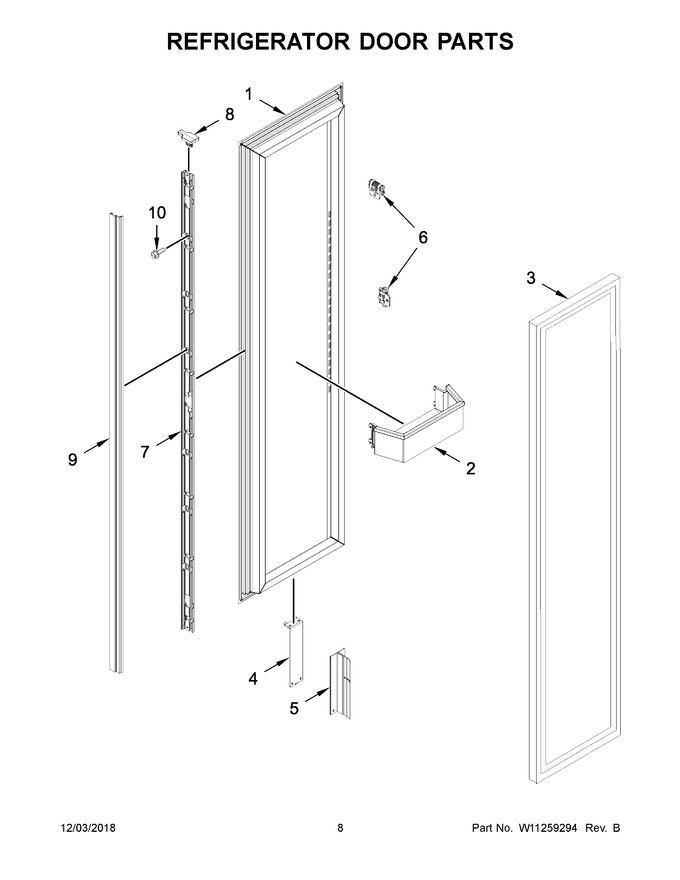

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11757587		Assembly, Refrigerator/freezer Door   (Replaces: W10823678)				$ 1,504.19
2	W11233619		Assembly, Door Bin   (Replaces: W10824623)				$ 356.82
3	W11038432		Gasket, Door (black)				$ 330.37
4	W11775252		Bracket, Air Divider   (Replaces: W10908496)		Appelez-nous	-
5	W11233377		Divider, Air   (Replaces: W10908495)		Appelez-nous	-
6	W11235097		Assembly, Panel Adjuster (horizontal)   (Replaces: W10873319)				$ 111.53
7	W11302040		Bracket, Panel Adjust   (Replaces: W11105107)		Appelez-nous	-
8	W11302061		Cap, Panel Adjust Trim   (Replaces: W10895136)			Immediately	$ 87.94
9	W11299811		Trim, Panel Adjust   (Replaces: W11105109)				$ 139.36
10	W11302041		Screw   (Replaces: W11085874)				$ 14.75
6A	W11235098		Assembly, Panel Adjuster (vertical)   (Replaces: W11215289)		Appelez-nous	-
NI	W11234308		Gauge, Door   (Replaces: W11028745)				$ 17.62
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
