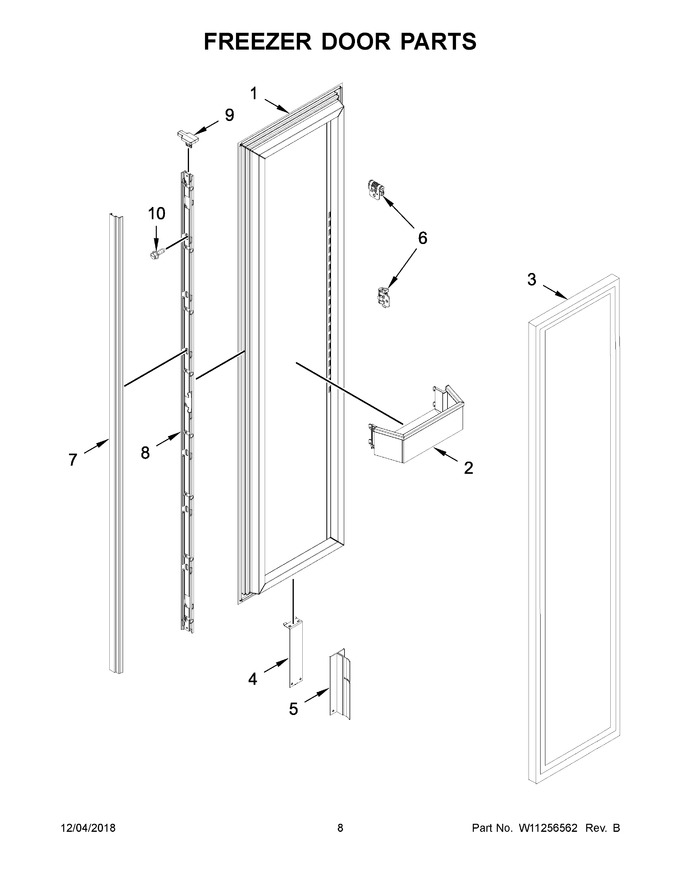

05 - Freezer Door Parts


06 - Upper Unit Parts


07 - Lower Unit And Tube Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11757589		Assembly, Freezer Door   (Replaces: W11239091)				$ 1,432.55
2	W11233619		Assembly, Door Bin   (Replaces: W10824623)				$ 339.83
3	W11038432		Gasket, Door (black)				$ 314.64
4	W11775252		Bracket, Air Divider   (Replaces: W10908496)		Appelez-nous	-
5	W11233377		Divider, Air   (Replaces: W10908495)		Appelez-nous	-
6	W11235097		Assembly, Panel Adjuster (horizontal)   (Replaces: W10873319)				$ 106.22
7	W11299811		Trim, Panel Adjust   (Replaces: W11105109)				$ 132.72
8	W11302040		Bracket, Panel Adjust   (Replaces: W11105107)		Appelez-nous	-
9	W11302061		Cap, Panel Adjust Trim   (Replaces: W10895136)			Immediately	$ 83.75
10	W11302041		Screw   (Replaces: W11085874)				$ 14.05
6A	W11235098		Assembly, Panel Adjuster (vertical)   (Replaces: W11215289)		Appelez-nous	-
NI	W11234308		Gauge, Door   (Replaces: W11028745)				$ 16.78
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
