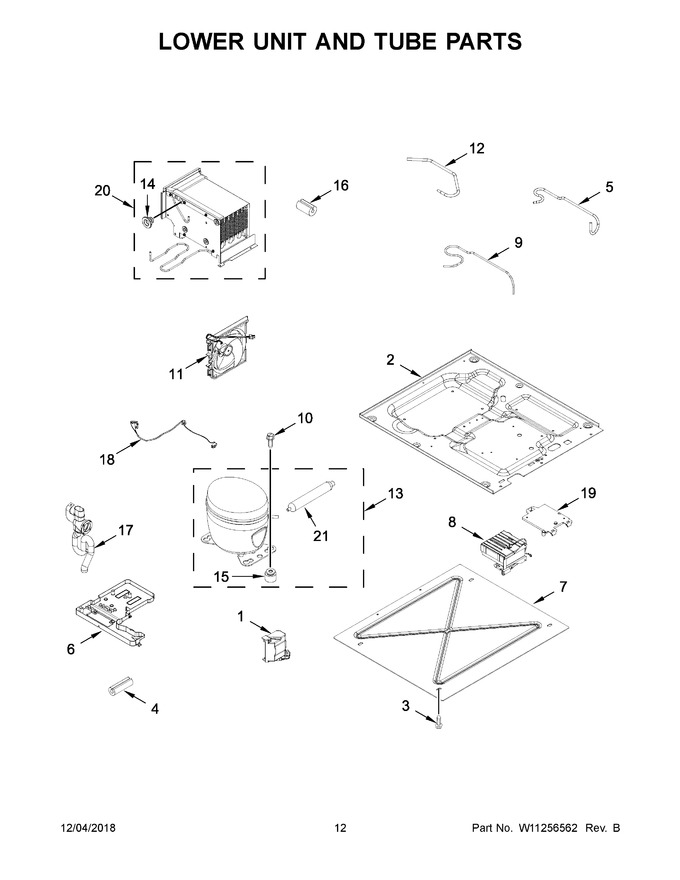

07 - Lower Unit And Tube Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11247667		Assembly, Compressor Cover   (Replaces: W11235263)				$ 109.75
2	W11234853		Pan, Base   (Replaces: W10761666)		Appelez-nous	-
3	WPW10141625		Screw   (Replaces: W10141625)				$ 21.16
4	W11233644		Grommet, Evaporator Tray   (Replaces: W10886557)		Appelez-nous	-
5	W11233646		Tube, Suction   (Replaces: W10772588)				$ 66.20
6	W11234855		Tray, Evaporator Drain   (Replaces: W10801047)		Appelez-nous	-
7	W11234818		Plate, Bottom   (Replaces: W10834246)		Appelez-nous	-
8	W11233620		Assembly, Inverter Box   (Replaces: W11083658)			Immediately	$ 380.95
9	W11233648		Tube, Discharge   (Replaces: W10770889)			Immediately	$ 114.24
10	W11661574		Screw   (Replaces: 489473)				$ 13.61
11	W11233637		Assembly, Condenser Fan Shroud   (Replaces: W10801052)			Immediately	$ 300.36
12	W11233639		Tube, Process   (Replaces: W10837048)			Immediately	$ 66.42
13	W11328338		Compressor				$ 573.56
14	W10587113		Grommet		Appelez-nous	-
15	W11661108		Grommet   (Replaces: 2183042)				$ 14.49
16	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.70
17	W11232777		Assembly, Drain Tube   (Replaces: W10781987)		Appelez-nous	-
18	W11233622		Harness, Compressor   (Replaces: W10818556)		Appelez-nous	-
19	W11233633		Bracket, Inverter Mounting   (Replaces: W10663674)		Appelez-nous	-
20	W11233634		Condenser (includes Drain Pan Heater)   (Replaces: W10762098)				$ 316.85
21	WPW10143759		Drier   (Replaces: W10874652)			Immediately	$ 30.78
NI	N/P		Refrigerant Charge 4.25 Oz (r-134a)		Appelez-nous	-
NI	978026		Valve, Access (5/16")			Immediately	$ 128.09
NI	876764		Valve, Access (3/16")			Immediately	$ 91.35
