Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11234861 Assembly, Cover Plate (charcoal Sparkle)   (Replaces: W10823656) In-Stock Immediately $ 173.76

2 W11679634 Cap, Water Filter (grey)   (Replaces: W10813884) In-Stock Immediately $ 14.36

3 EDR2RXD1B Filter, Water   (Replaces: W10680605) In-Stock Immediately $ 49.99

4 W11233642 Clip   (Replaces: 2223913) Appelez-nous -
5 W11233370 Harness, Valve (also Order 2300868 - 5/16" Water Connector)   (Replaces: W10831294) Appelez-nous -
6 W11299812 Latch, Push   (Replaces: W11248444) Special Order $ 83.07

7 W11194438 Housing, Water Filter (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11165806) In-Stock Immediately $ 209.64

8 W11233375 Valve, Single Solenoid (also Order 2300868 - 5/16" Water Connector)   (Replaces: W10869169) Special Order $ 203.89

9 WPW10624574 Supply, Power   (Replaces: W10624574) In-Stock Immediately $ 231.58

10 W11234290 Assembly, Wifi Module (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11110768) Special Order $ 171.32

11 W11380825 Cord, Power   (Replaces: W10909588) Special Order $ 157.36

12 WP2203075 Spacer   (Replaces: 2203075) In-Stock Immediately $ 17.91

13 W11233373 Screw   (Replaces: W11168732) Appelez-nous -
14 W11235091 Assembly, Filter (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11040338) Special Order $ 390.32

15 W11233371 Tube, Filter Inlet   (Replaces: W11050485) Special Order $ 115.44

16 W11247540 Mount, Filter   (Replaces: W10826558) Special Order $ 214.02

17 W11247543 Cover, Filter Mount   (Replaces: W10826572) Special Order $ 106.90

18 W11247538 Screw   (Replaces: W10882791) In-Stock Immediately $ 14.05

19 W11233631 Control, Electronic   (Replaces: W11043308) In-Stock Immediately $ 417.67

20 W11233638 Control, Electronic (led Driver)   (Replaces: W10909108) Special Order $ 412.49

21 W11302064 Tray , Control Board Mounting   (Replaces: W10910459) Appelez-nous -
22 W11302065 Lid, Cover   (Replaces: W10822213) Special Order $ 79.31

23 W11233635 Harness, Hv   (Replaces: W10890820) Appelez-nous -
24 W11233621 Harness, Lv   (Replaces: W10890821) In-Stock Immediately $ 148.63

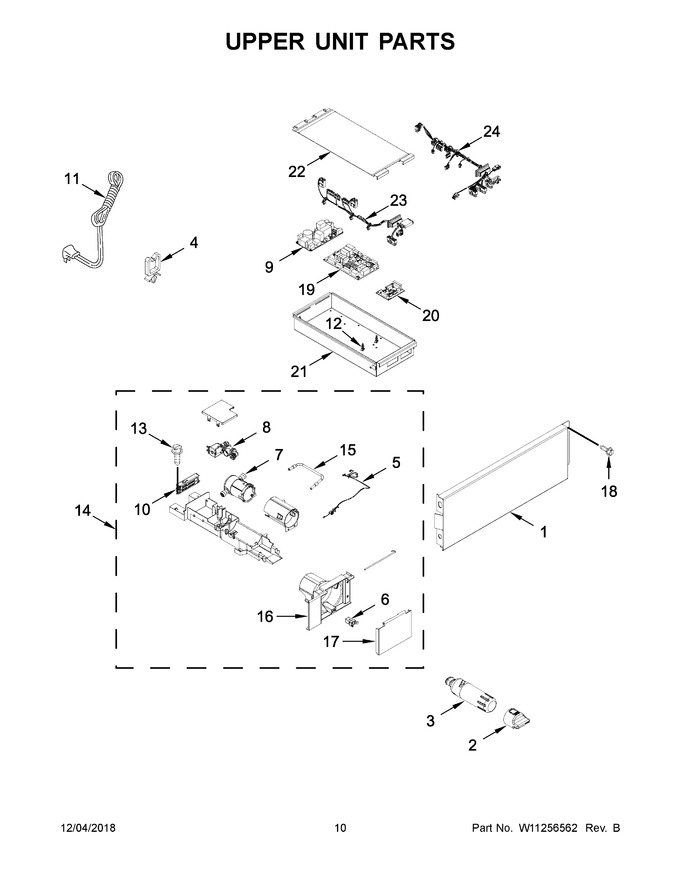

    View Diagram in Separate Window     Print Icon   Print Part List
