01 - Cover Sheet

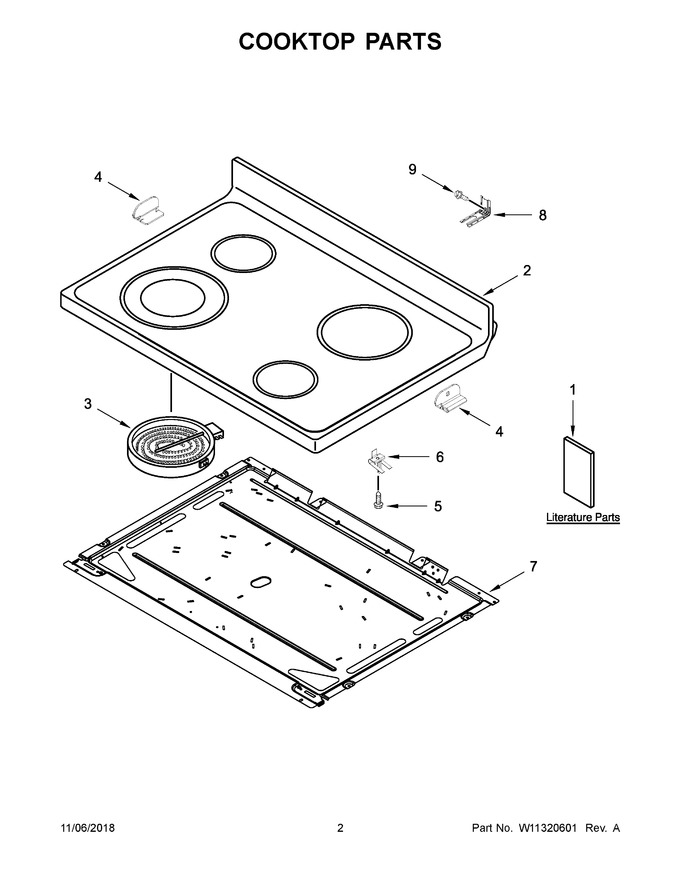

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11209963 | Use And Care Guide |
|
- | |||||
| 2 | W10906139 | Cooktop (white) (Replaces: W10853442) |
|
$ 586.24 | |||||
| 3 | WP8273993 | Element (1800w) (left Front, Right Rear) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 4 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W11209972 | Installation Instructions |
|
- | |||||
| 1B | W11210590 | Tech Sheet (english/french/spanish) |
|
- | |||||
| 1C | W11210593 | Diagram, Wiring |
|
- | |||||
| 3A | W11171119 | Element (1200w) (left Rear, Right Front) (Replaces: W10248261) |
|
Immediately | $ 182.23 | ||||
| 4A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11171894 | Harness, Cooktop (left) |
|
$ 228.00 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11458879 | Harness, Wire (main) (Replaces: W11134840) |
|
- | |||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 34.76 |
