01 - Cover Sheet
02 - Cooktop Parts

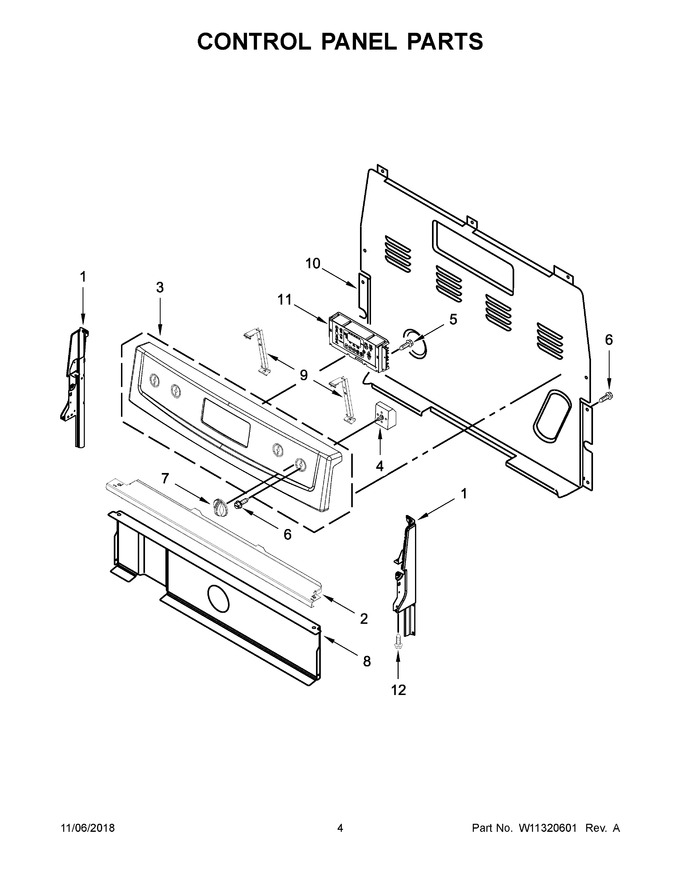

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 42.45 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 3 | W11252172 | Panel, Control (white) (Replaces: W11157016) |
|
$ 347.04 | |||||
| 4 | 5500-287 | Switch, Infinite (green) (left Front, Right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 7 | W11188750 | Knob, Infinite (white) (Replaces: W10844800) |
|
$ 21.54 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11536795 | Control, Range (white) (Replaces: W11204488) |
|
Immediately | $ 252.62 | ||||
| 12 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 60.83 | |||||
| 4A | WP3148952 | Switch, Infinite (yellow) (left Rear, Right Front) (Replaces: 3148952) |
|
Immediately | $ 69.51 |
