01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

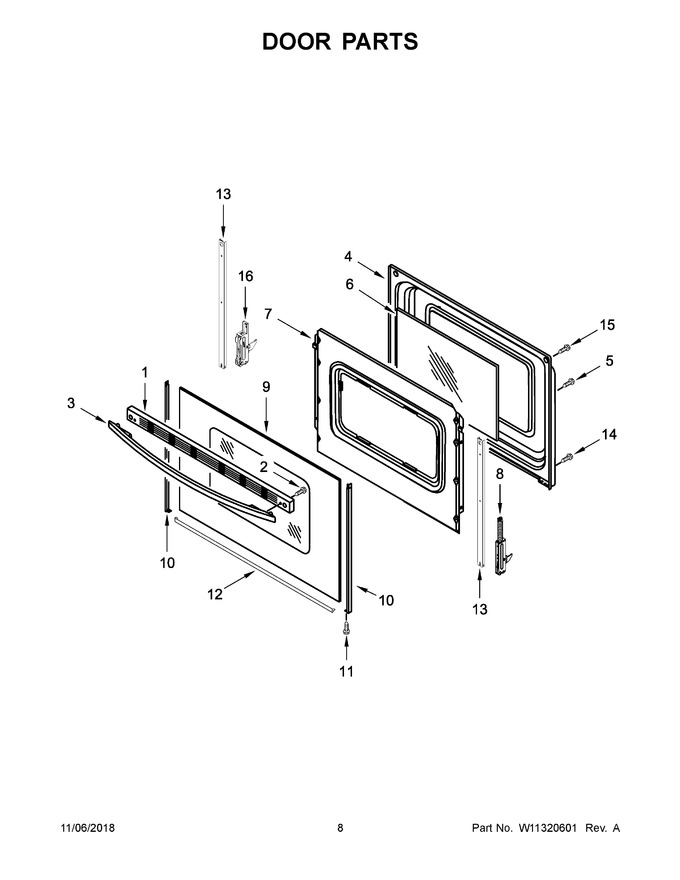

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Door Top (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 8.14 | ||||
| 3 | W10817434 | Handle, Oven Door (white) (Replaces: W10323588) |
|
Immediately | $ 234.82 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W10620754) |
|
$ 171.68 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761505) |
|
$ 188.29 | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 9 | W10904906 | Glass, Outer Door (white) (Replaces: W10851723) |
|
$ 228.32 | |||||
| 10 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 13 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 27.68 | ||||
| 14 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 16 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 10A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 |
