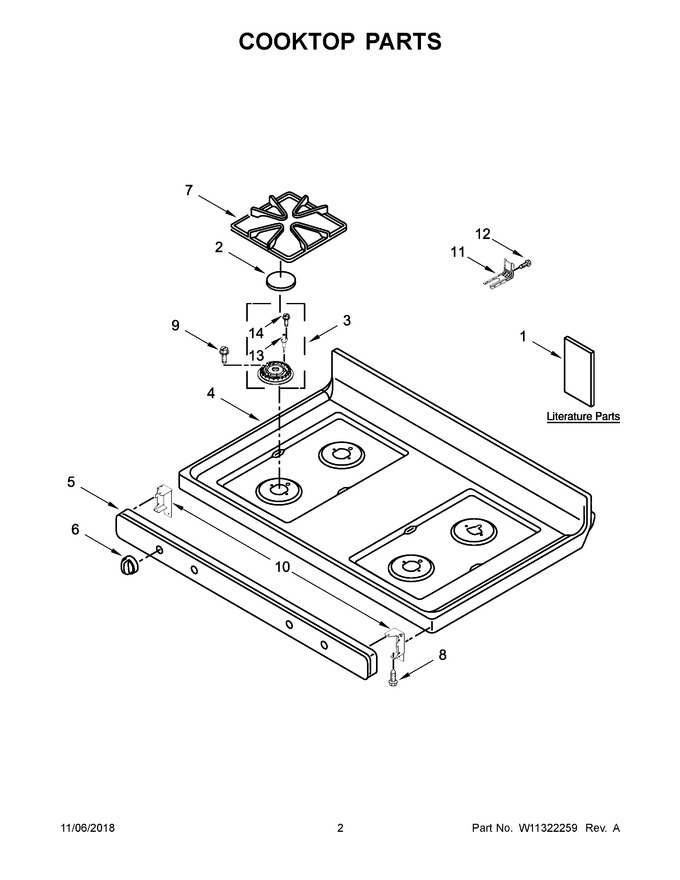

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11122558 Instructions, Installation Appelez-nous -
2 WPW10183375 Set, Burner Cap (black)   (Replaces: W10183375) Special Order $ 147.56

3 WPW10515455 Assembly, Burner (17.5k) (left Front, Right Front)   (Replaces: W10515455) Special Order $ 112.47

4 W11133661 Cooktop (black) Appelez-nous -
5 8523855 Panel, Manifold (black) Special Order $ 167.79

6 W11117407 Knob, Control (black)   (Replaces: W10844795) Special Order $ 75.45

7 W10915784 Kit, Grate (black)   (Replaces: W10682667) Special Order $ 345.85

8 WP3368921 Screw   (Replaces: 3400701) In-Stock Immediately $ 7.13

9 WP3196557 Screw   (Replaces: 3196557) In-Stock Immediately $ 7.95

10 8523249 Bracket, Manifold Appelez-nous -
11 W11447673 Bracket, Anti-tip   (Replaces: W10306542) Special Order $ 31.82

12 WP7101P485-60 Screw, Anti-tip Kit   (Replaces: 7101P485-60) Special Order $ 29.26

13 WPW10515459 Electrode   (Replaces: W10515459) In-Stock Immediately $ 41.69

14 WP8273062 Screw   (Replaces: 8273062) In-Stock Immediately $ 7.91

1A W11122565 Guide, Use & Care Appelez-nous -
1B W10873899 Sheet, Tech Appelez-nous -
1C W10873901 Diagram, Wiring Appelez-nous -
3A WPW10515454 Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454) Special Order $ 110.23

3B WPW10515453 Assembly, Burner (6k) (right Rear)   (Replaces: W10515453) Special Order $ 94.56

4A W11133660 Cooktop (white) Appelez-nous -
5A WP8523854 Panel, Manifold (white)   (Replaces: 8523854) Special Order $ 276.74

6A W11788674 Knob, Control (white)   (Replaces: W10844794) Special Order $ 8.09

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10842520 Harness, Main Appelez-nous -
NI W11161843 Harness, Bake/broil   (Replaces: W10753750) Special Order $ 206.24

NI W10809927 Harness, Cooktop Special Order $ 153.24

NI 3196896 Clip, Wire Appelez-nous -
NI 3400964 Clip, Wire   (Replaces: 3196520) Special Order $ 84.76

NI W10334923 Clip, Gas Wiring Appelez-nous -
NI W10841090 Clamp, Wire   (Replaces: 7111P017-60) Appelez-nous -
NI 16515 Clip, Harness   (Replaces: 313438) Special Order $ 19.55
