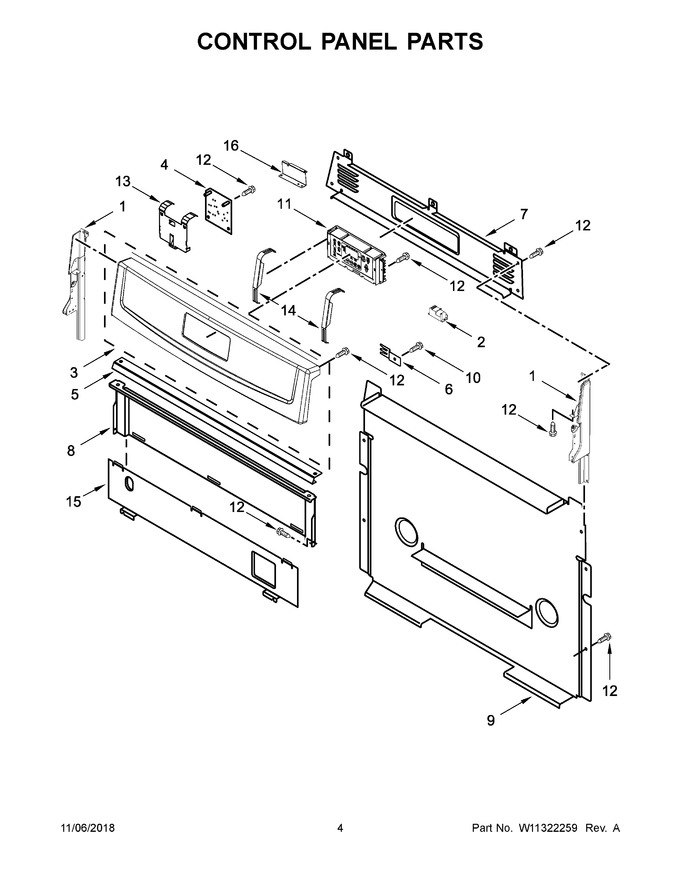

03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 146.50
2	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 307.06
3	W11231173		Panel, Console (black)   (Replaces: W11157104)		Appelez-nous	-
4	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
5	W10516123		Bracket, Console Mounting		Appelez-nous	-
6	8523412		Bracket, Rear Cooktop				$ 159.90
7	W10198745		Cover, Upper				$ 122.76
8	W10192841		Shield, Heat				$ 101.61
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11314380		Control, Range (black)   (Replaces: W11204502)				$ 479.26
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
13	W10516463		Bracket, Dsi		Appelez-nous	-
14	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 80.77
15	8053505		Shield, Heat				$ 157.99
16	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
11A	W11395410		Control, Range (white)   (Replaces: W11204500)				$ 457.62
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 40.44
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 40.43
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 57.93
3A	W11219667		Panel, Console (white)   (Replaces: W11157106)				$ 127.82
