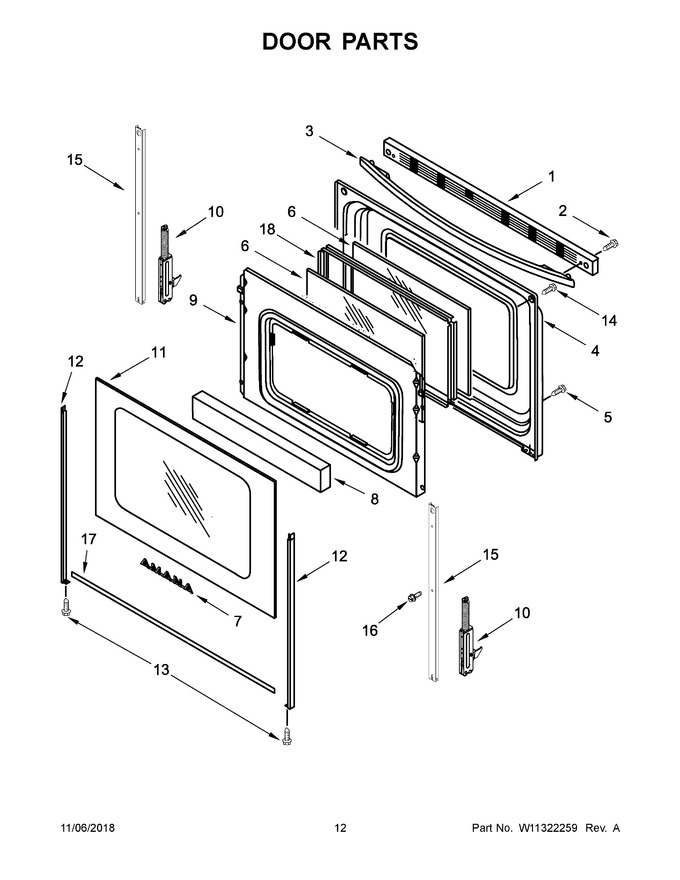

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top Vent (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 2 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.78 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 238.78 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 355.13 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11159620 | Glass, Inner (Replaces: W11044424) |
|
Immediately | $ 177.53 | ||||
| 7 | W11788675 | Badge (black) (Replaces: W10846751) |
|
$ 29.62 | |||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 96.54 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 221.30 | |||||
| 10 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 11 | W11702168 | Glass, Outer Door (black) (Replaces: W10886896) |
|
$ 177.02 | |||||
| 12 | W10761018 | Trim, Door Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.07 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 15 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 26.36 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 17 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
Immediately | $ 157.96 | ||||
| 18 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 84.86 | ||||
| 10A | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 72.76 | ||||
| 11A | W10904906 | Glass, Outer Door (white) (Replaces: W10851723) |
|
$ 228.32 | |||||
| 12A | W10761014 | Trim, Door Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 12B | WP8523172 | Trim, Door Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12C | WP8523166 | Trim, Door Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 17A | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 1A | W10817433 | Trim, Top Vent (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 3A | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 223.64 | ||||
| 7A | W10849465 | Badge (white) |
|
Immediately | $ 78.87 |
