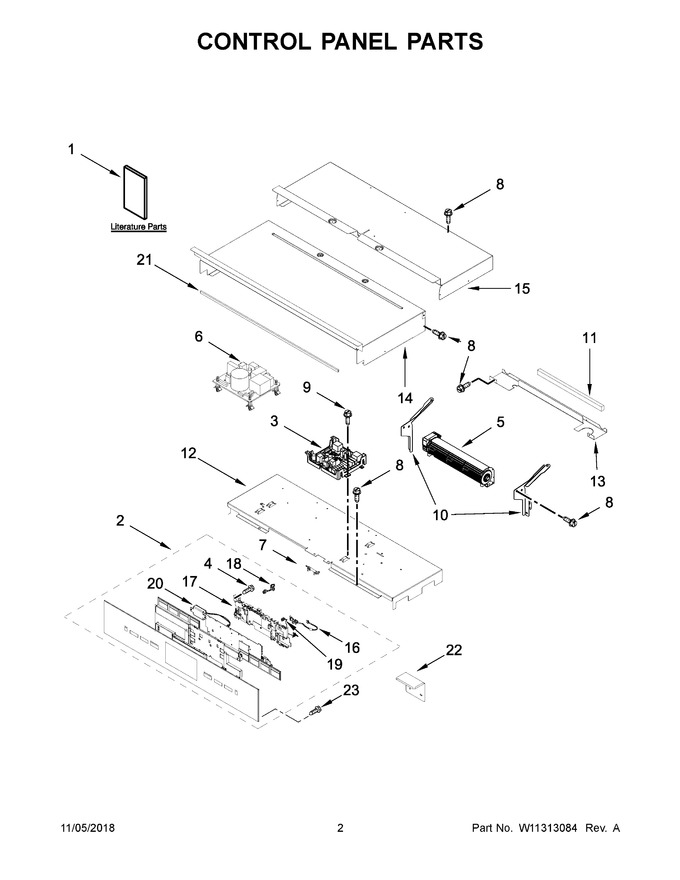

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754337		Guide, Use & Care		Appelez-nous	-
2	W11240890		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10855949)				$ 1,820.46
3	W10821712		Manager, Appliance   (Replaces: W10635086)			Immediately	$ 512.59
4	W10489172		Screw				$ 11.41
5	W11713858		Blower, Dual Speed   (Replaces: W11200130)			Immediately	$ 331.99
6	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 302.24
7	W11204568		Fuse, Thermal   (Replaces: W10782117)			Immediately	$ 131.58
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10864102		Tray, Electronic				$ 67.13
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10667383)		Appelez-nous	-
16	W10575307		Jumper Harness, Power Supply			Immediately	$ 165.56
17	W10668510		Housing				$ 100.16
18	W10566973		Harness, Keypad (left To Center)				$ 78.28
19	W10524350		Harness, Keypad (right To Center)				$ 74.49
20	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 77.08
21	W10728475		Gasket, Rubber				$ 36.31
22	W10810292		Shield, Wifi Access		Appelez-nous	-
23	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 17.71
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10790014		Instructions, Installation		Appelez-nous	-
1B	W10767737		Sheet, Tech		Appelez-nous	-
1C	W10787928		Guide, Wifi Connectivity		Appelez-nous	-
1D	W10351318		Instructions, Undercounter Install		Appelez-nous	-
NI	W10655464		Bracket, Harness				$ 38.77
NI	W11226263		Harness, Signal				$ 220.11
NI	W11132992		Harness, Main				$ 237.95
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10339879		Tie, Cable   (Replaces: 4454842)				$ 7.90
NI	W11537624		Assembly, Antenna & Housing   (Replaces: W11234542)				$ 101.01
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 31.38
NI	4450800		Screw, Grounding				$ 12.83
NI	W10487999		Clip, Harness				$ 20.11
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 20.39
NI	W11132989		Harness, Door Latch				$ 113.31
