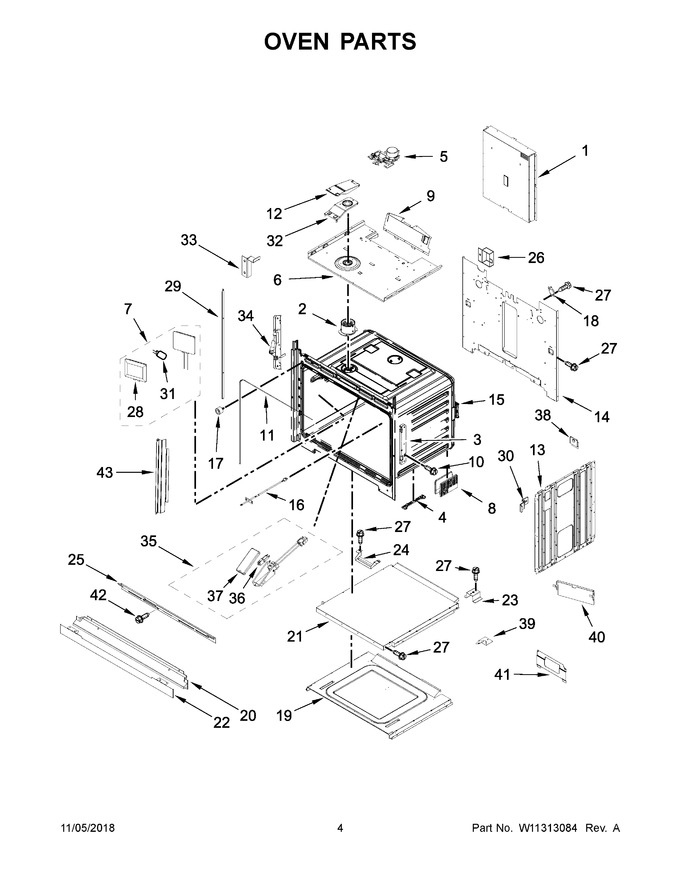

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10318196 | Duct, Chassis Back |
|
$ 208.47 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W11085298) |
|
$ 24.32 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10616802) |
|
Immediately | $ 54.75 | ||||
| 4 | W11240831 | Spacer, Base (Replaces: W10618102) |
|
$ 16.43 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10618131) |
|
Immediately | $ 306.46 | ||||
| 6 | W10904158 | Top, Chassis |
|
- | |||||
| 7 | W11245268 | Assembly, Oven Light (Replaces: W11198684) |
|
$ 99.25 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10618101) |
|
$ 31.91 | |||||
| 9 | W10904163 | Deflector, Blower |
|
Immediately | $ 161.70 | ||||
| 10 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.11 | |||||
| 11 | W11623080 | Gasket (Replaces: W10739089) |
|
Immediately | $ 72.35 | ||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 66.62 | |||||
| 13 | W10663556 | Side, Chassis (left) |
|
- | |||||
| 14 | N/P | Back, Chassis (not Serviced) |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 133.83 | ||||
| 17 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 10.49 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10834867) |
|
$ 333.00 | |||||
| 20 | WPW10351275 | Assembly, Bottom Vent (black) (Replaces: W10351275) |
|
$ 555.40 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 209.57 | |||||
| 22 | WPW10351236 | Trim, Bottom Vent (black) (Replaces: W10351236) |
|
Immediately | $ 144.72 | ||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | W10283036 | Vent, Top 30 |
|
$ 63.87 | |||||
| 26 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 28 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 91.74 | |||||
| 29 | W10536160 | Cover, Side Trim (black (left) (Replaces: W10344481) |
|
Immediately | $ 40.12 | ||||
| 30 | W10834501 | Spacers, Front |
|
$ 15.18 | |||||
| 31 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 32 | W10616809 | Base, Vent Exhaust |
|
$ 30.70 | |||||
| 33 | W10863234 | Bracket, Side Cover (left) (Replaces: W10737716) |
|
- | |||||
| 34 | W11045086 | Receiver, Slow Close Hinge |
|
Immediately | $ 122.69 | ||||
| 35 | W11325525 | Assembly, Light (top) (Replaces: W11223933) |
|
$ 96.21 | |||||
| 36 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 37 | W10169756 | Lens, Light |
|
$ 40.18 | |||||
| 38 | W10834286 | Spacer, Center |
|
$ 22.00 | |||||
| 39 | W10832249 | Shield. Bottom (left) |
|
- | |||||
| 40 | W10753663 | Shield, Inner |
|
- | |||||
| 41 | W10846765 | Shield, Outer |
|
- | |||||
| 42 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.19 | ||||
| 43 | W10791505 | Shield, Front Frame Heat |
|
- | |||||
| 13A | W10318190 | Side, Chassis (right) |
|
$ 117.20 | |||||
| 29A | W10536160 | Cover, Side Trim (black (right) (Replaces: W10344480) |
|
Immediately | $ 40.12 | ||||
| 33A | W10737715 | Bracket, Side Cover (right) |
|
- | |||||
| 39A | W10832250 | Shield. Bottom (right) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11685004 | Insulation, Control Knob (Replaces: W10464568) |
|
- | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10520715) |
|
$ 118.92 | |||||
| NI | W11688414 | Insulation, Cavity (Replaces: W10566640) |
|
- |
