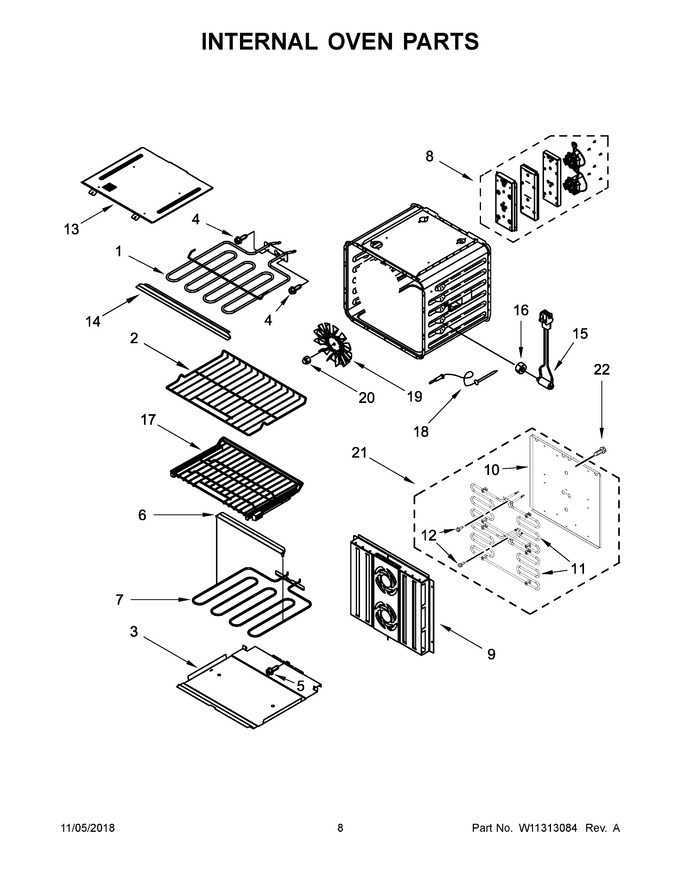

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804429		Element, Broil   (Replaces: W10764078)			Immediately	$ 152.91
2	WPW10554526		Rack, Oven   (Replaces: W10554526)			Immediately	$ 174.25
3	W10318198		Tray, Hidden Bake				$ 186.50
4	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
6	W10282957		Crossbar, Hidden Bake Tray				$ 45.21
7	W11545804		Element, Bake   (Replaces: W10546517)			Immediately	$ 102.53
8	W11255349		Assembly, Convection Motor   (Replaces: W11200176)			Immediately	$ 393.58
9	W11313747		Assembly, Baffle   (Replaces: W10559988)				$ 227.39
10	W10853277		Shield, Convection				$ 89.72
11	W10663735		Element, Convection				$ 293.90
12	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.83
13	W11290999		Shield, Broil Element   (Replaces: W10911205)				$ 200.90
14	W10588737		Shield, Broil Front				$ 100.38
15	W11220388		Jack, Meat Probe   (Replaces: W10696226)			Immediately	$ 66.31
16	W11231343		Nut, Locking   (Replaces: W11033111)				$ 12.83
17	W11256305		Rack, Sliding   (Replaces: W10840297)				$ 348.18
18	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
19	W11301887		Blade, Convection Fan   (Replaces: W10803141)			Immediately	$ 336.99
20	W10794042		Nut, Acorn (lh)   (Replaces: W10631504)				$ 12.51
21	W11098805		Assembly, Convection Element   (Replaces: W10854021)				$ 244.78
22	W10739592		Screw		Appelez-nous	-
20A	W10803140		Nut, Acorn (rh)				$ 13.11
