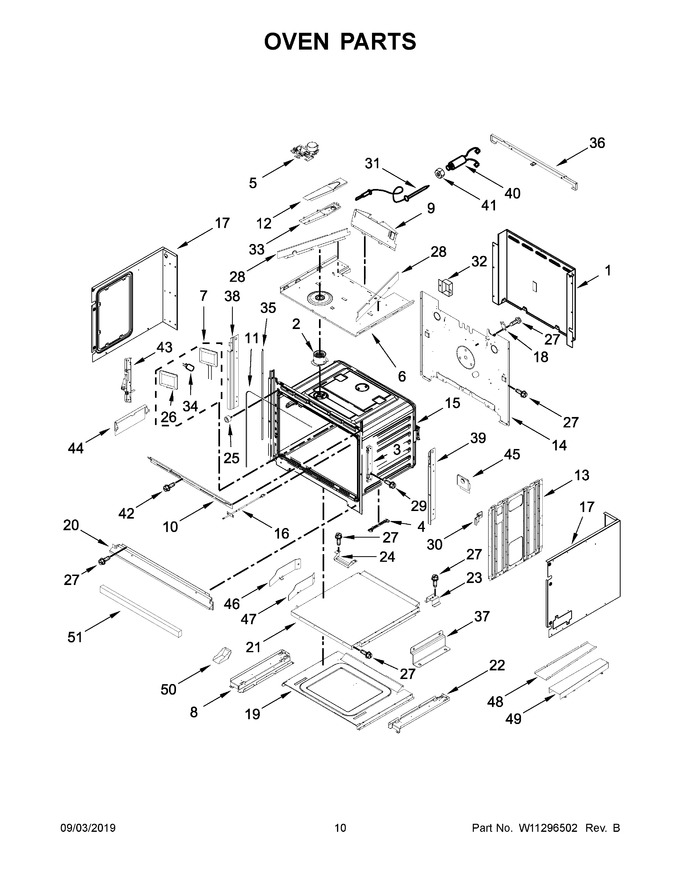

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10519707		Cover, Back Duct				$ 74.08
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 24.32
3	W11613828		Receiver, Hinge   (Replaces: W11044775)			Immediately	$ 54.75
4	W11292538		Spacer, Base   (Replaces: W11135510)		Appelez-nous	-
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10904158		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 102.36
8	W10283020		Support, Base (left)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 161.70
10	W11297245		Vent, Center 30   (Replaces: W11251780)		Appelez-nous	-
11	W11623080		Gasket   (Replaces: W10739089)			Immediately	$ 72.35
12	W11050172		Cover, Vent Exhaust		Appelez-nous	-
13	W10663556		Side, Chassis (left)		Appelez-nous	-
14	W11292548		Back, Chassis   (Replaces: W10904161)		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11290976		Probe, Sensor   (Replaces: W11208463)				$ 185.54
17	W10655466		Chassis, Combo Side (left)				$ 80.62
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11238787		Base, Chassis				$ 333.00
20	W11348369		Assembly, Bottom Vent (stainless)		Appelez-nous	-
21	W11225075		Chassis, Bottom Duct		Appelez-nous	-
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 10.49
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 91.74
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
28	W10681156		Deflector, Chassis		Appelez-nous	-
29	WPW10254050		Screw   (Replaces: W10254050)				$ 8.11
30	W10834501		Spacers, Front				$ 15.18
31	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W11050173		Base, Vent Exhaust		Appelez-nous	-
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
35	W10536162		Trim, Side (black (left))   (Replaces: W10344483)				$ 36.89
36	W10283022		Support, Crossbar				$ 77.45
37	W10283024		Side, Bracket				$ 75.10
38	W10710302		Rail, Side (left)				$ 78.24
39	W10710309		Rail, Side (right)				$ 78.24
40	W11220388		Jack, Meat Probe   (Replaces: W10696226)			Immediately	$ 66.31
41	W11231343		Nut, Locking   (Replaces: W11033111)				$ 12.83
42	W11193480		Screw   (Replaces: W10607120)				$ 14.02
43	W11045086		Receiver, Slow Close Hinge			Immediately	$ 122.69
44	W11034940		Shield, Slow Close Hinge				$ 80.93
45	W10834286		Spacer, Center				$ 22.00
46	W11124808		Angle, Bottom Duct Corner (lh)		Appelez-nous	-
47	W11124807		Angle, Bottom Duct Corner (rh)		Appelez-nous	-
48	W11050176		Flue, Bottom		Appelez-nous	-
49	W11050177		Flue, Top		Appelez-nous	-
50	W11096843		Deflector, Back Duct		Appelez-nous	-
51	W11226313		Gasket, Rubber (652mm)   (Replaces: W11162062)				$ 23.24
13A	W10318190		Side, Chassis (right)				$ 117.20
17A	W11037649		Chassis, Combo Side (right)				$ 169.09
20A	W11295342		Assembly, Bottom Vent (black Stainless)   (Replaces: W10903251)		Appelez-nous	-
35A	W10536162		Trim, Side (black (right))   (Replaces: W10344482)				$ 36.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11685004		Insulation, Control Knob   (Replaces: W10464568)		Appelez-nous	-
NI	W11292324		Insulation, Cavity   (Replaces: W10917743)		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 118.92
