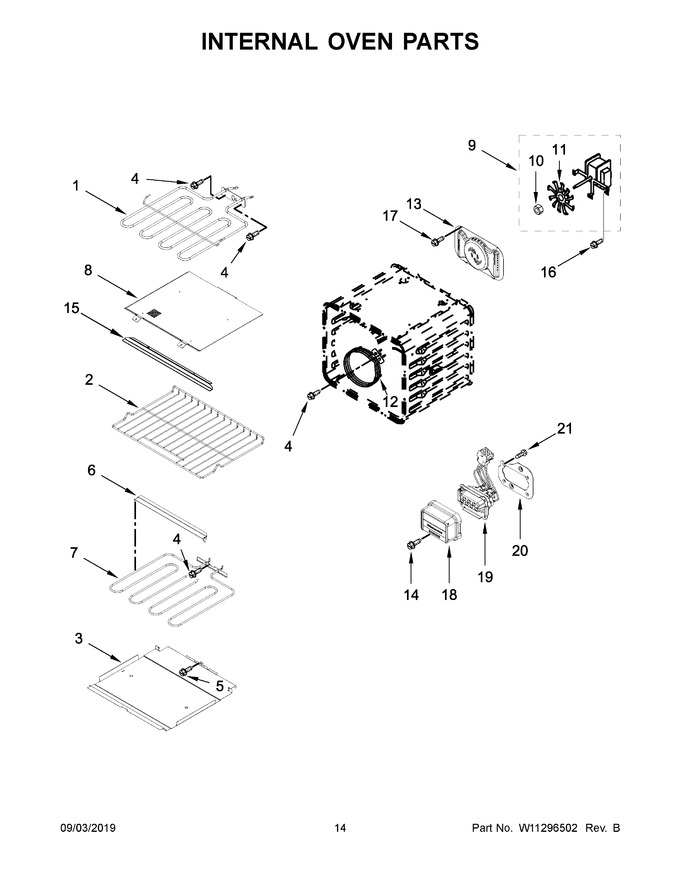

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804429		Element, Broil   (Replaces: W10764078)			Immediately	$ 152.91
2	WPW10554526		Rack, Oven   (Replaces: W10554526)			Immediately	$ 174.25
3	W10318198		Tray, Hidden Bake				$ 186.50
4	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
6	W10282957		Crossbar, Hidden Bake Tray				$ 45.21
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 102.53
8	W11290999		Shield, Broil Element   (Replaces: W11099640)				$ 200.90
9	W10860984		Fan, Convection   (Replaces: W10722667)			Immediately	$ 176.41
10	W10794042		Nut, Acorn (lh)   (Replaces: W10631504)				$ 12.51
11	W10819914		Blade, Fan   (Replaces: W10631503)			Immediately	$ 84.45
12	W11678579		Element, Convection   (Replaces: W10546519)			Immediately	$ 115.24
13	W11234763		Baffle, Bow Tie   (Replaces: W10918895)				$ 220.29
14	W11291186		Screw   (Replaces: W11236393)		Appelez-nous	-
15	W10588738		Shield, Broil Front				$ 95.76
16	W10850807		Screw   (Replaces: W10720084)				$ 7.41
17	WP74003976		Screw   (Replaces: W10906658)				$ 7.19
18	W11291122		Cover, Connector   (Replaces: W10903893)		Appelez-nous	-
19	W11291121		Connector, Plug Assembly Accessory   (Replaces: W10903862)		Appelez-nous	-
20	W11307587		Plate, Cavity Backer		Appelez-nous	-
21	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.19

    View Diagram in Separate Window       Print Part List
