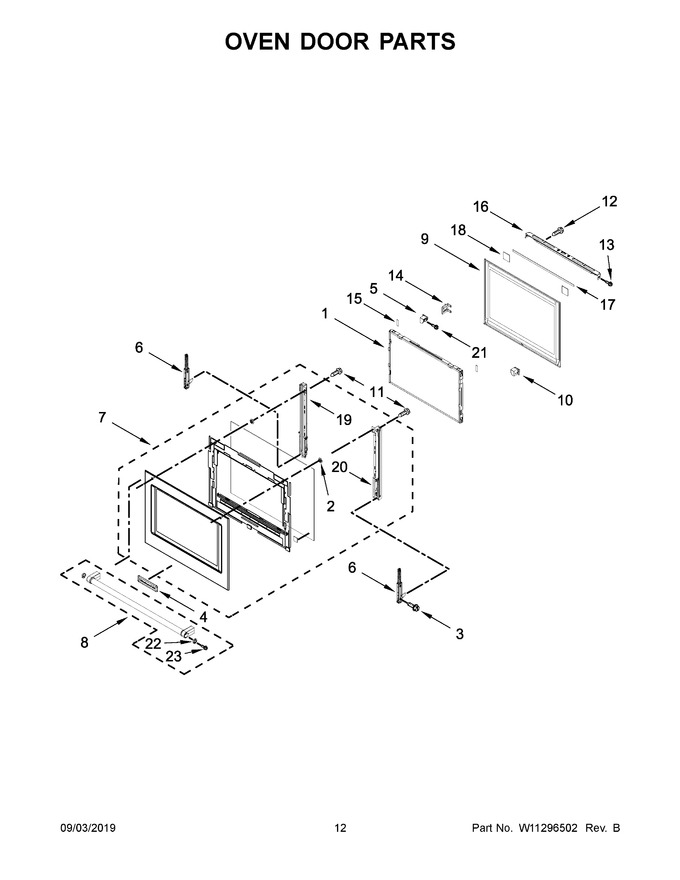

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11295339 | Assembly, Window Pack (Replaces: W11213479) |
|
$ 347.31 | |||||
| 2 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.10 | ||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.75 | ||||
| 4 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 72.57 | ||||
| 5 | WPW10581831 | Bracket, Door (left) (Replaces: W10581831) |
|
$ 35.43 | |||||
| 6 | W11295341 | Hinge, Door (Replaces: W11044774) |
|
$ 73.76 | |||||
| 7 | W11294840 | Assembly, Door (stainless) (Replaces: W11121258) |
|
- | |||||
| 8 | W11518518 | Assembly, Handle (stainless) (Replaces: W10541913) |
|
$ 220.71 | |||||
| 9 | W11295340 | Assembly, Cavity Glass (Replaces: W11210866) |
|
- | |||||
| 10 | WPW10581826 | Bracket, Door (right) (Replaces: W10581826) |
|
$ 63.46 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.88 | ||||
| 12 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.19 | ||||
| 13 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 19.33 | |||||
| 14 | WPW10549747 | Clip, Spring (Replaces: W10549747) |
|
$ 19.91 | |||||
| 15 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 9.88 | |||||
| 16 | W11280091 | Vent, Top Metal |
|
$ 139.94 | |||||
| 17 | W11082539 | Pad, Vent (Replaces: W10489273) |
|
$ 116.39 | |||||
| 18 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 11.85 | ||||
| 19 | W11355410 | Rail, Door Side (left) |
|
- | |||||
| 20 | W11355411 | Rail, Door Side (right) |
|
- | |||||
| 21 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 22 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 22.04 | ||||
| 23 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 7.99 | ||||
| 7A | W11294839 | Assembly, Door (black Stainless) (Replaces: W11121259) |
|
- |
