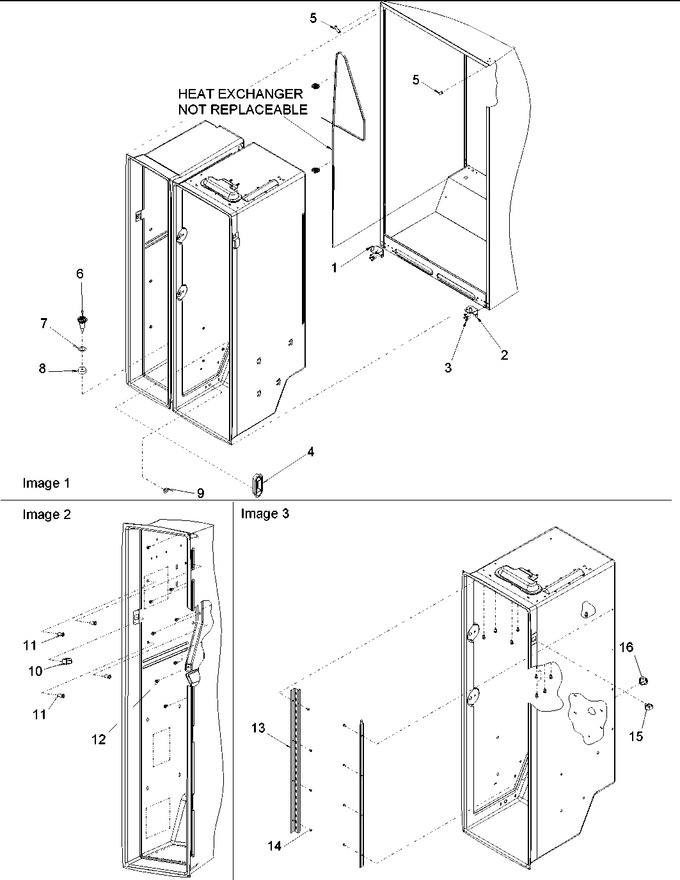

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12570905ED		Hinge, Bottom (lt-blk)		Appelez-nous	-
2	12570906ED		Hinge, Bottom (rt-blk)		Appelez-nous	-
3	WP67006715		Screw, Sm   (Replaces: M0241608)				$ 7.55
4	12634801		Grille, Return Air		Appelez-nous	-
5	67003485		Cover, Corner (blk)   (Replaces: 12587702B)			Immediately	$ 22.14
6	12456901		Funnel, Drain		Appelez-nous	-
7	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
8	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
9	12567101		Plug, Air Tunnel		Appelez-nous	-
10	W11291138		Switch, Ref Light   (Replaces: 12466104)			Immediately	$ 36.67
11	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
12	M0581003		Grommet, Screw		Appelez-nous	-
13	12614211		Ladder, Powder Ct		Appelez-nous	-
14	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
15	W11291138		Switch, Ref Light   (Replaces: 12466104)			Immediately	$ 36.67
16	W11447232		Socket, Light   (Replaces: Y12570701)			Immediately	$ 13.87

    View Diagram in Separate Window       Print Part List
