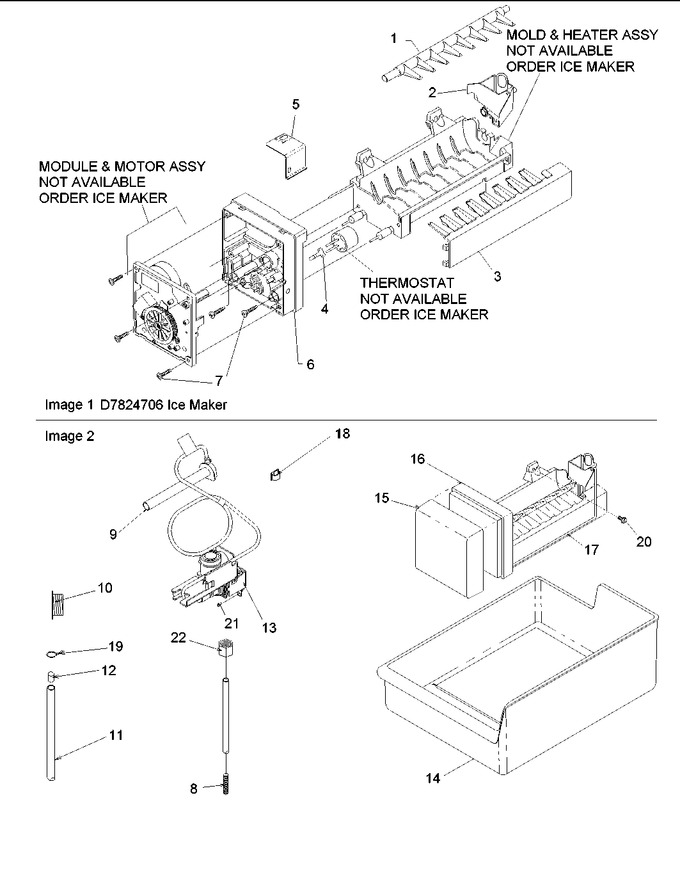

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP627843 | Ejector, Ice (Replaces: 95101-1) |
|
$ 83.60 | |||||
| 2 | WP628356 | Inlet, Water (Replaces: 95100-1) |
|
$ 51.19 | |||||
| 3 | WP2182124 | Stripper, Ice (Replaces: 95102-1) |
|
$ 86.05 | |||||
| 4 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) |
|
$ 11.05 | |||||
| 5 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) |
|
$ 93.00 | |||||
| 6 | WP2195914 | Support, Module Housing (Replaces: 95103-1) |
|
$ 104.57 | |||||
| 7 | WP681249 | Screw (Replaces: 95106-1) |
|
Immediately | $ 7.86 | ||||
| 8 | A1055101 | Spring, Antikink |
|
- | |||||
| 9 | WP67003576 | Elbow, Fill Tube (Replaces: 12522201) |
|
$ 60.96 | |||||
| 10 | 10244904 | Coupling |
|
$ 25.37 | |||||
| 11 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 12.43 | |||||
| 12 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 13 | WP67003753 | Valve-water (Replaces: 12638801) |
|
Immediately | $ 109.40 | ||||
| 14 | WP67001255 | Pan, Ice (Replaces: 10476207) |
|
$ 203.08 | |||||
| 14 | Y10901401 | Arm, I.m. Shut-off |
|
- | |||||
| 15 | WPW10289690 | Cover, Ice Maker (Replaces: 12582501) |
|
Immediately | $ 8.40 | ||||
| 16 | D7824706Q | Ice Maker (Replaces: D7824706) |
|
Immediately | $ 167.35 | ||||
| 18 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 7.78 | |||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 20 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 21 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.06 | |||||
| 22 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.97 | |||||
| NI | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| NI | 10549601 | Label, Caution (ice Maker) |
|
- | |||||
| NI | 10527056 | Instructions-installation |
|
- | |||||
| NI | 12666401 | Wire-im Shutoff |
|
- | |||||
| NI | 10526701 | Clamp, Wire |
|
- | |||||
| NI | 8003RP | Ice Maker Hook Up Kit (Replaces: R0131235) |
|
Immediately | $ 43.29 | ||||
| NI | 12640001 | Retainer-tube |
|
- | |||||
| NI | 12583405 | Harness-module Ice Maker |
|
- | |||||
| NI | A3036901 | Label Warranty |
|
- | |||||
| NI | WP489128 | Screw, Bracket (Replaces: 95108-1) |
|
$ 10.88 | |||||
| NI | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 10.99 |
