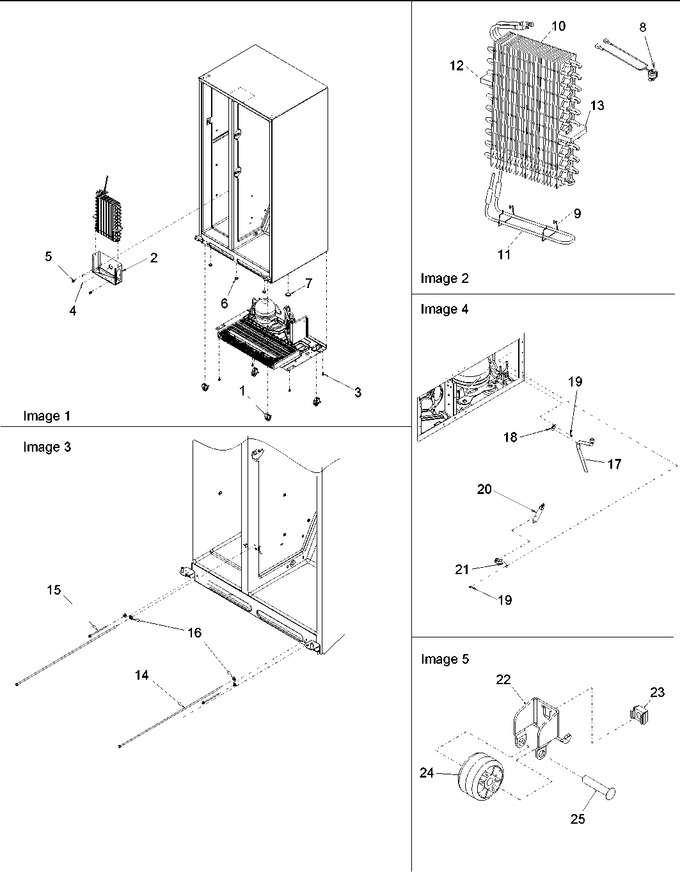

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12580301Q		Assy, Roller Brkt		Appelez-nous	-
2	12558101WD		Tray, Evap Drip		Appelez-nous	-
3	M0260242		Screw, Tf		Appelez-nous	-
4	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
5	10623003		Clip, Evaporator		Appelez-nous	-
6	A3080001		Plug, Button (blk)		Appelez-nous	-
7	A3076901		Plug-button				$ 5.70
8	R0131454		Kit, Thermostat				$ 123.34
9	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
10	12676401		Evaporator, Sxs		Appelez-nous	-
11	WP12049801		Heater, Evap   (Replaces: 12049801)				$ 149.50
12	12590101		Block, Air Coil (lt)		Appelez-nous	-
13	12590102		Block, Air Coil (rt)		Appelez-nous	-
14	10093313		Screw, Adjusting		Appelez-nous	-
15	71003131		Bolt, Roller Adj   (Replaces: 12606102)			Immediately	$ 7.08
16	M0274074		Washer, Nylon		Appelez-nous	-
17	12580401		Tube, Drain		Appelez-nous	-
18	M0102303		Clamp		Appelez-nous	-
19	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
20	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
21	10547002		Clip, Drier		Appelez-nous	-
22	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 53.10
23	M0286708		Nut, Speed				$ 47.85
24	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
25	M1205302		Rivet				$ 5.85
