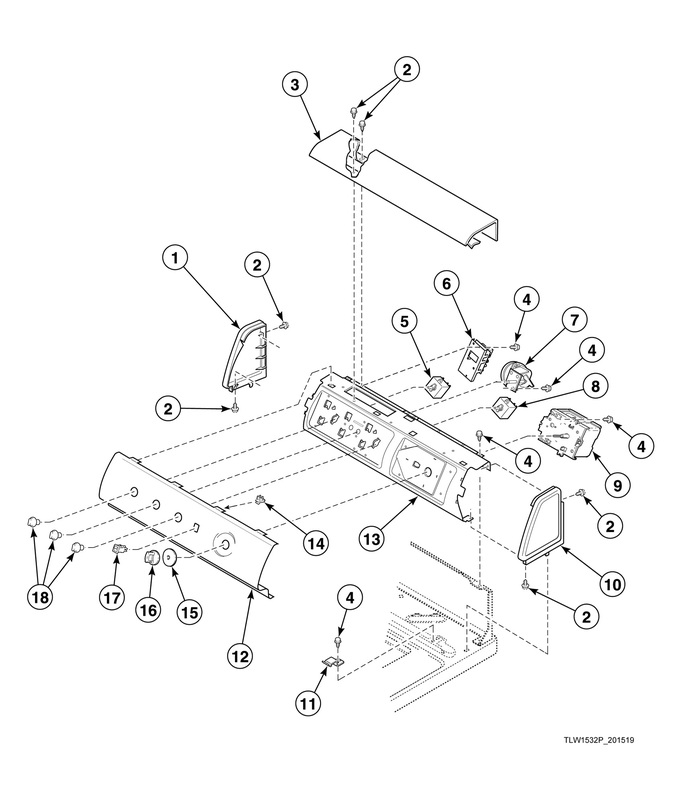

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D504009WP		End Panel (comment: Left)			Immediately	$ 24.67
2	D501086		Screw			Immediately	$ 7.72
3	39905W		Top Cover				$ 54.32
4	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.82
5	35115		Temperature Switch (comment: 3 Position)				$ 34.08
6	-		Not On Your Model		Appelez-nous	-
7	201609P		Pressure Switch				$ 152.38
8	35118		Speed Switch				$ 6.25
9	37922P		Timer				$ 440.06
10	D504008WP		End Panel (comment: Right)				$ 21.37
11	35358		Hold-down Clip				$ 7.72
12	202848W		Control Panel		Appelez-nous	-
13	201654		Control Support Panel		Appelez-nous	-
14	00161		Grounding Clip				$ 11.35
15	803116		Timer Skirt Assembly				$ 10.20
16	202883		Timer Knob Assembly		Appelez-nous	-
17	38424W		Rocker Switch				$ 9.70
18	804719		Control Knob Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
