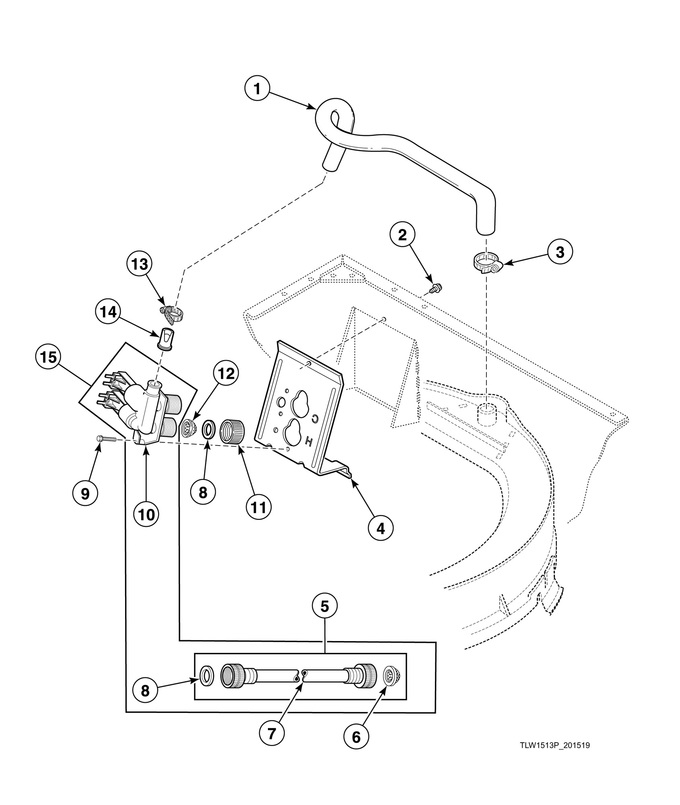

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	38155		Mixing Valve-to-tub Cover Hose				$ 29.65
2	WP27001200		Screw   (Replaces: 33562)				$ 7.68
3	800803		Hose Clamp				$ 7.31
4	39407		Mixing Valve Mounting Bracket				$ 7.72
5	F200116		Water Hose (comment: 5 Feet; Includes Items 6 And 8)				$ 31.62
6	802254		Washer (comment: Flow Restrictor; Water Pressure Reducer; Available For Water Pressure Up To But Not Exceeding 120 Psi)				$ 54.64
6	803615		Washer (comment: Filter Screen)			Immediately	$ 4.70
7	20617		Fill Hose (comment: 8 Feet)				$ 49.05
7	20618		Fill Hose (comment: 10 Feet)		Appelez-nous	-
8	20290		Washer		Appelez-nous	-
9	39397		Screw		Appelez-nous	-
10	201402P		Mixing Valve   (Replaces: 201468P)			Immediately	$ 48.92
11	24145		Cap (comment: Use To Cap Off Hot Water Side Of Mixing Valve On Certain Models)		Appelez-nous	-
12	24122		Mixing Valve Screen				$ 8.42
13	36801		Hose Clamp			Immediately	$ 9.22
14	34500		Backflow Preventer			Immediately	$ 7.72
15	-		Not On Your Model		Appelez-nous	-
