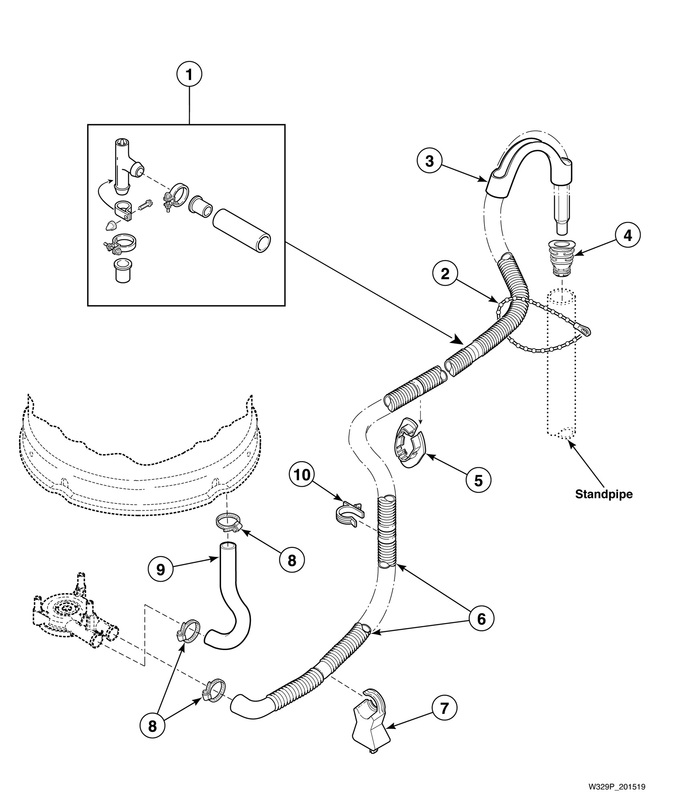

Drain Hose And Siphon Break Kit


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing Valve And bracket - All Models Except Aws48nw And Aws53nw


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel, Control Support Panel And Controls


Lead-in Cord And Terminals


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals And Extractor Tool


Motor, Mounting Bracket, Belt, Pump And Idler Assembly


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And Counterweight


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	76660		Siphon Break Kit (comment: Siphon Break Kit Must Be Installed In Drain Hose If Drain Receptacle Is Lower Than Cabinet Top Of Washer)   (Replaces: 562P3)			Immediately	$ 133.25
2	33489		Standpipe Strap		Appelez-nous	-
3	33615		Drain Hose Sleeve				$ 8.35
4	40008101		Standpipe Adapter   (Replaces: 36878)				$ 94.10
5	32219		Strain Relief				$ 7.72
6	39893		Drain Hose			Immediately	$ 53.01
7	38732		Hose Stand				$ 2.42
8	F200204		Hose Clamp				$ 5.66
9	38351		Tub-to-pump Hose				$ 23.75
10	36014		Retainer Clip				$ 7.72
NA	451P3		Drain Extension Kit			Immediately	$ 182.00

    View Diagram in Separate Window       Print Part List
