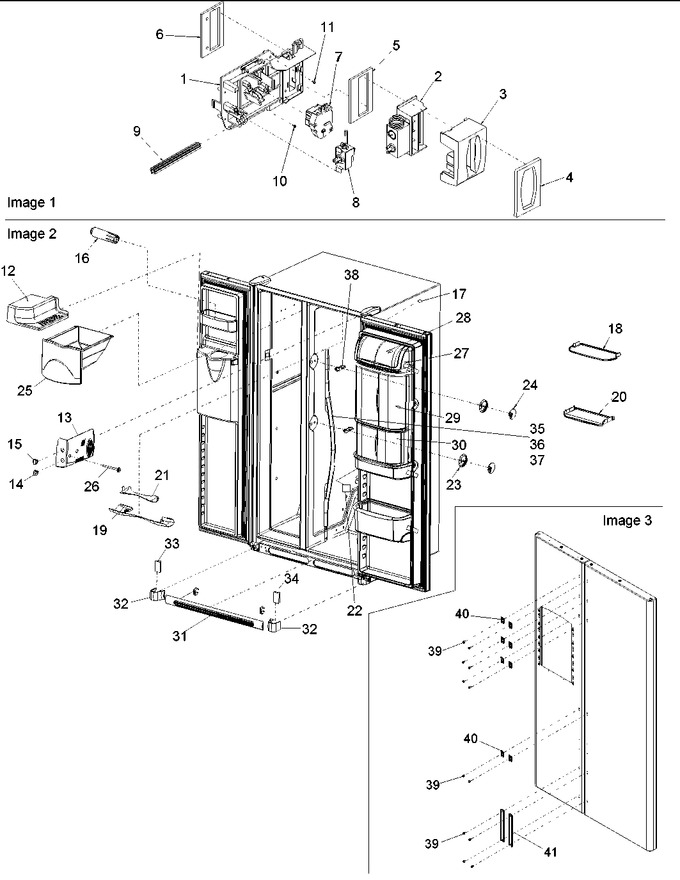

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12558005		Bracket, Control		Appelez-nous	-
2	12571701		Control, Damper				$ 107.01
3	12604201		Insulation, Damper		Appelez-nous	-
4	12582901		Gasket, Control Cover				$ 5.51
5	12582801		Gasket, Damper				$ 7.62
6	10383201		Gasket, Damper		Appelez-nous	-
7	WP67001036		Timer, Defrost   (Replaces: 12566301)			Immediately	$ 150.57
8	WP12351006		Control, Fz Temp   (Replaces: 12351006)				$ 208.11
9	12571801		Extension, Knob		Appelez-nous	-
10	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
11	M0216539		Screw		Appelez-nous	-
12	12582101		Shelf, Quick Chill		Appelez-nous	-
13	12571201		Cover, Control		Appelez-nous	-
14	12620901		Knob, Control		Appelez-nous	-
15	12620902		Knob, Control		Appelez-nous	-
16	EDR4RXD1B		Net-water Filter(single)   (Replaces: 12589201)			Immediately	$ 49.99
17	Y12528501		Nameplate (amana Plus)			Immediately	$ 59.75
18	12567301		Grip Pad (gallon Bucket)		Appelez-nous	-
19	12602907		Cover, Light		Appelez-nous	-
20	12621201		Grip Pad (tilt Bucket)		Appelez-nous	-
21	12677801		Lens, Light		Appelez-nous	-
22	12488101		Filter, Air				$ 26.94
23	12572801		Control, Chiller		Appelez-nous	-
24	12572901		Grille,chiller Cont-b/b		Appelez-nous	-
25	12571604		Front, Ice Bucket		Appelez-nous	-
26	M0231426		Screw		Appelez-nous	-
27	12478101		Tray, Dairy		Appelez-nous	-
28	12478003		Door, Dairy		Appelez-nous	-
29	12590201		Chiller Assy (large)		Appelez-nous	-
30	12590202		Chiller Assy (mini)		Appelez-nous	-
31	12591001BQ		Assy, Toe Grille (blk)		Appelez-nous	-
32	12561901B		Cover, Lwr Hinge (blk)				$ 11.62
33	12575002		Tech Sheet-s X S Refrig Xxno		Appelez-nous	-
34	12575013		Tech Sheet-sxs(disp Trblshtng)		Appelez-nous	-
35	12618301S		Handle, Door (stnls)		Appelez-nous	-
37	12618401S		Cap, Handle (stnls)		Appelez-nous	-
38	12572701		Clip, Chiller Control		Appelez-nous	-
39	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
40	12619202		Clip, Door Handle		Appelez-nous	-
NI	12602001		Harness, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
