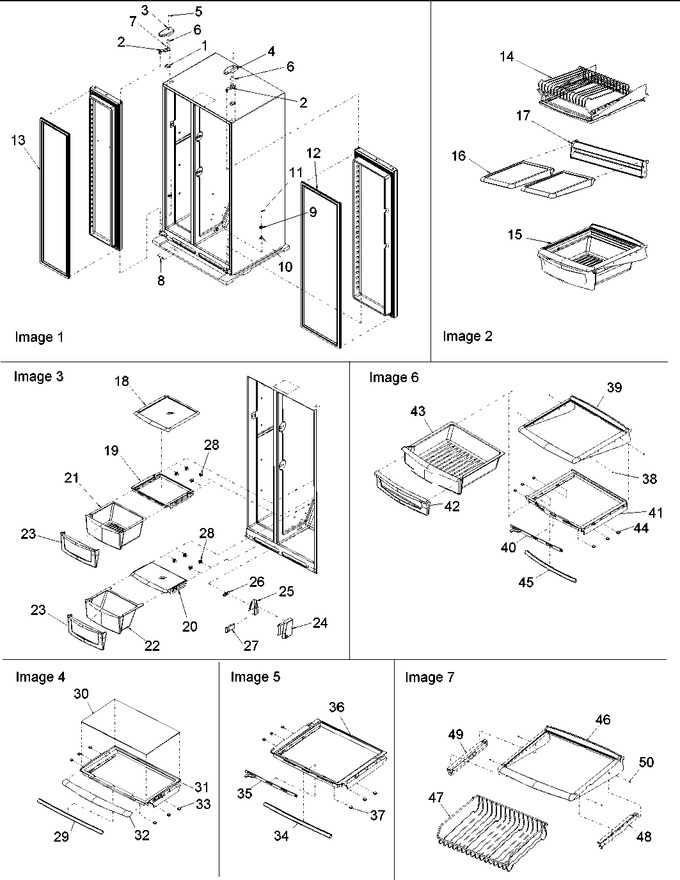

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12579702		Shim, Top Hinge		Appelez-nous	-
2	WP12566607ED		Hinge, Top (blk)   (Replaces: 12566603ED)				$ 86.75
3	12684201B		Cover, Top Hinge (lt-blk)		Appelez-nous	-
4	12684202B		Cover, Top Hinge (rt-blk)		Appelez-nous	-
5	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.19
6	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
7	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.02
8	WP2300868		Tube, Union   (Replaces: B5706903)			Immediately	$ 29.05
9	R0181181		Closure, Door (blk)   (Replaces: 12431302)			Immediately	$ 7.19
10	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)				$ 7.46
11	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.20
12	W10840101		Gasket, Ref Dr (blk)   (Replaces: 12591501B)				$ 311.67
13	W10133491		Gasket, Fz Dr (blk)   (Replaces: 12591502B)				$ 342.75
14	12589901Q		Kit,can Rack		Appelez-nous	-
15	12589801Q		Assy,sm Crisper Frm(26)		Appelez-nous	-
16	12610301		Shelf,specialty		Appelez-nous	-
17	12617801		Rack, Shelf		Appelez-nous	-
18	12559701		Shelf, Top Crisper		Appelez-nous	-
19	12585701Q		Assy,b/b Lg Crisper				$ 72.91
20	12585801Q		Deli Frm Assy		Appelez-nous	-
21	WP67001503		Pan, Lg Crisper   (Replaces: 12559504)				$ 147.75
22	WP67001504		Pan, Deli   (Replaces: 12559404)				$ 147.46
23	12560301		Front,deli/lg Crisper Pan		Appelez-nous	-
24	12586001		Housing, Deli Control		Appelez-nous	-
25	12586101		Slide, Deli Control		Appelez-nous	-
26	12586201U		Control, Deli (blue)		Appelez-nous	-
27	12664201		Tunnel, Deli Control		Appelez-nous	-
28	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.31
29	12589104		Seal, Sm Crisper Front		Appelez-nous	-
30	12204811		Glass, Shelf		Appelez-nous	-
31	12663501		Frame, Deli		Appelez-nous	-
32	12562301		Trim, Deli Frame		Appelez-nous	-
33	12064701		Pad, Glide		Appelez-nous	-
34	12589104		Seal, Sm Crisper Front		Appelez-nous	-
35	12562601U		Slide, Lg Crisper (blue)		Appelez-nous	-
36	WP67002723		Frame, Lg Crisper   (Replaces: 12663601)				$ 166.40
37	12064701		Pad, Glide		Appelez-nous	-
38	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.02
39	12457401		Shelf,sta-b/b(26)		Appelez-nous	-
40	12562602U		Slide, Sm Crisper (blue)		Appelez-nous	-
41	12663701		Frame, Sm Crisper		Appelez-nous	-
42	12560401		Front, Sm Crisper Pan		Appelez-nous	-
43	12559604		Pan,sm Crisper-26		Appelez-nous	-
44	12064701		Pad, Glide		Appelez-nous	-
45	12589104		Seal, Sm Crisper Front		Appelez-nous	-
46	12457501		Shelf, Glide		Appelez-nous	-
47	12565901		Rack, Can		Appelez-nous	-
48	12579601		Glide, Can Rack (rt)		Appelez-nous	-
49	12579602		Glide, Can Rack (lt)		Appelez-nous	-
50	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.02
