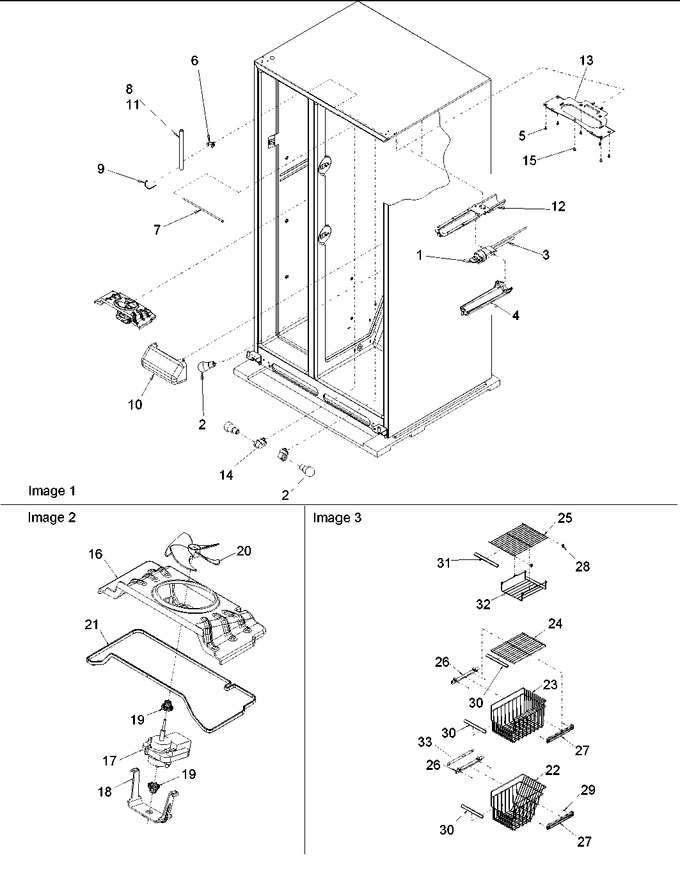

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11395888		Plug, Bypass   (Replaces: 12664501)			Immediately	$ 50.72
2	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
3	12590601		Housing, Water Filter Assy		Appelez-nous	-
4	WP12568001		Cover, Filter   (Replaces: 12568001)			Immediately	$ 86.76
5	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
6	M0322202		Tie Wire		Appelez-nous	-
7	12617601		Tube, Plastic		Appelez-nous	-
8	12607601Q		Insulation,tubing		Appelez-nous	-
9	M0321210		Tie, Elec		Appelez-nous	-
10	12567001		Cover, Crisper Light		Appelez-nous	-
11	A3030303		Gasket (per Foot)		Appelez-nous	-
12	12688501		Plate, Filter Backing		Appelez-nous	-
13	12666201		Plate, Light Backing		Appelez-nous	-
14	12679501		Socket, Light		Appelez-nous	-
15	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.02
16	12590001		Shroud, Evap		Appelez-nous	-
17	WPW10128551		Motor, Evap Fan   (Replaces: 10449508)			Immediately	$ 78.75
18	12217805		Clip, Evap Motor		Appelez-nous	-
19	WP67002780		Grommet, Fan Motor   (Replaces: 12619301)				$ 7.81
20	WP2169142		Fan, Evaporator   (Replaces: 12217201)			Immediately	$ 43.41
21	A3030302		Gasket		Appelez-nous	-
22	12570301		Basket, Lwr Fz		Appelez-nous	-
23	12570401		Basket, Upr Fz		Appelez-nous	-
24	12570501		Shelf, Lwr Fz		Appelez-nous	-
25	12570601		Shelf, Upr Fz		Appelez-nous	-
26	12015102		Rail, Shelf (lt)		Appelez-nous	-
27	10972802		Rail, Shelf (rt)		Appelez-nous	-
28	C8973801		Support, Frz Shelf				$ 8.35
29	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
30	12314101		Trim, Basket/shelf		Appelez-nous	-
31	12314102		Trim, Basket/shelf		Appelez-nous	-
32	12585601		Shelf, Hanging Wire		Appelez-nous	-
33	12683601		Spacer, Fz Shelf		Appelez-nous	-
