01 - Cover Sheet

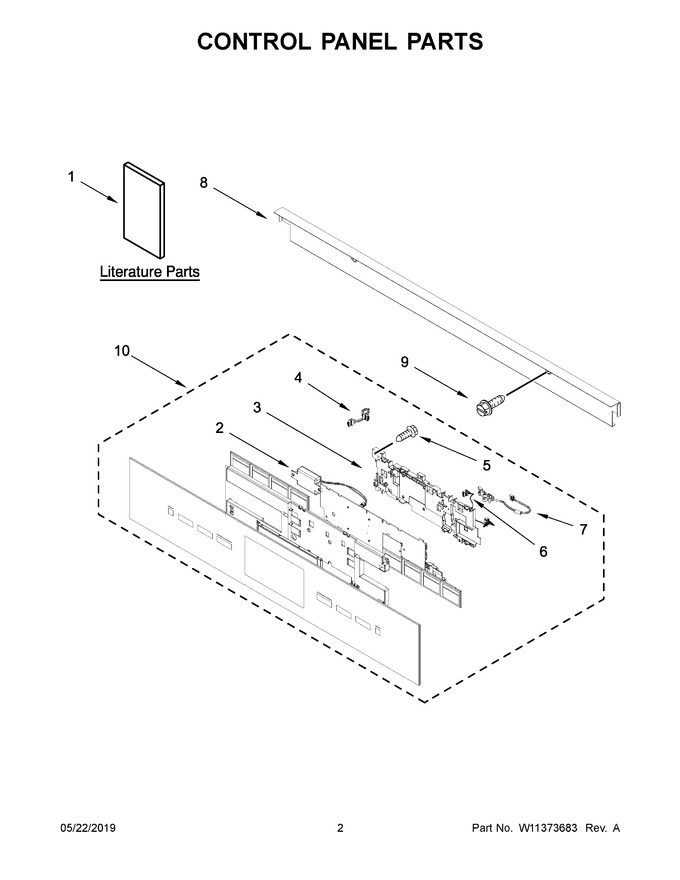

02 - Control Panel Parts


03 - Oven Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11235626		Instructions, Installation		Appelez-nous	-
2	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 77.08
3	W10668510		Housing				$ 100.16
4	W10566973		Harness, Keypad (left To Center)				$ 78.28
5	W10489172		Screw				$ 11.41
6	W10524350		Harness, Keypad (right To Center)				$ 74.49
7	W10575307		Jumper Harness, Power Supply			Immediately	$ 165.56
8	W10444127		Cover, 30" Compliment				$ 124.50
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
10	W11460596		Assembly, Control Panel (black)   (Replaces: W11241533)				$ 1,501.65
1A	W11235346		Guide, Use And Care (microwave Oven)		Appelez-nous	-
1B	W11284428		Sheet, Tech		Appelez-nous	-
1C	W11235305		Diagram, Wiring		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 11.59
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11449277		Harness, Interlock   (Replaces: W11356969)			Immediately	$ 148.59
NI	W11356954		Harness, Fan And Turntable				$ 141.67
NI	W11356968		Harness, Inverter				$ 145.95
NI	W11356986		Harness, Communication			Immediately	$ 107.49
NI	W11356977		Harness, Cable Tree Assembly				$ 81.02
NI	W11325605		Jumper Harness, Communication   (Replaces: W11356987)				$ 182.09
NI	4450800		Screw, Grounding				$ 12.83
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-
NI	W11356992		Conduit				$ 212.66
