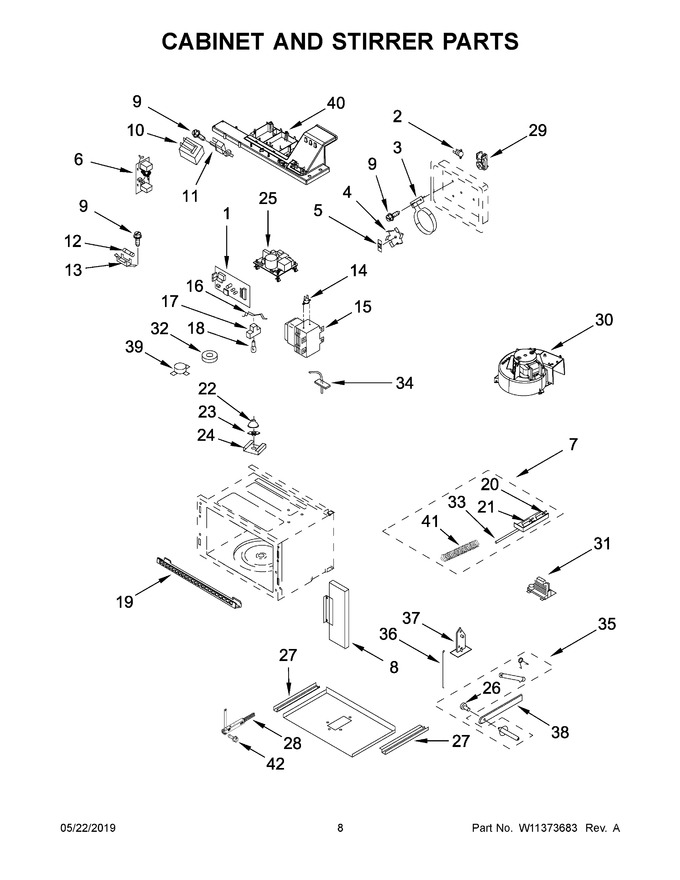

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11325784 | Manager, Microwave Appliance (Replaces: W11289988) |
|
Immediately | $ 197.23 | ||||
| 2 | W11607085 | Sensor, Convection (Replaces: 423107845441) |
|
Immediately | $ 44.42 | ||||
| 3 | WPW10493735 | Heater, Convection Element (Replaces: 461967848711) |
|
Immediately | $ 110.49 | ||||
| 4 | W11512064 | Fan, Convection (Replaces: 461967001792) |
|
Immediately | $ 171.35 | ||||
| 5 | W11724411 | Nut, Speed (Replaces: W10120233) |
|
Immediately | $ 60.47 | ||||
| 6 | W11398764 | Filter, Noise (Replaces: W10692851) |
|
Immediately | $ 204.55 | ||||
| 7 | W11033422 | Assembly, Interlock Switch (Replaces: W10358241) |
|
Immediately | $ 159.55 | ||||
| 8 | W10486208 | Trim, Side (left) (Replaces: 461967017491) |
|
$ 79.14 | |||||
| 9 | 461967825321 | Screw |
|
$ 12.13 | |||||
| 10 | W11238401 | Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 360.89 | ||||
| 11 | 461967842541 | Thermoactuator |
|
$ 72.29 | |||||
| 12 | W11188752 | Fuse (Replaces: 241908600053) |
|
Immediately | $ 17.37 | ||||
| 13 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 14 | W11233913 | Thermostat, Magnetron (Replaces: 461967846741) |
|
Immediately | $ 156.08 | ||||
| 15 | W11346197 | Magnetron (Replaces: W11226473) |
|
Immediately | $ 271.25 | ||||
| 16 | W10465869 | Spring, Lamp |
|
Immediately | $ 103.76 | ||||
| 17 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 77.82 | |||||
| 18 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 32.22 | ||||
| 19 | 461968973241 | Vent, Top Microwave |
|
$ 67.46 | |||||
| 20 | W10211972 | Switch (Replaces: 461967848881) |
|
Immediately | $ 52.40 | ||||
| 21 | W11214928 | Holder, Switch (Replaces: W10876593) |
|
$ 36.06 | |||||
| 22 | 423107022541 | Reflector |
|
$ 85.90 | |||||
| 23 | W11193483 | Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 104.82 | ||||
| 24 | W11440819 | Clip, Spring (Replaces: 461967010591) |
|
$ 23.00 | |||||
| 25 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 26 | WPW10128850 | Bushing (Replaces: 461967510191) |
|
Immediately | $ 142.08 | ||||
| 27 | 8205707 | Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 68.79 | ||||
| 28 | W10874474 | Hinge, Door (Replaces: W11256757) |
|
Immediately | $ 63.12 | ||||
| 29 | W11534564 | Motor, Convection Fan (Replaces: 461967848251) |
|
Immediately | $ 105.70 | ||||
| 30 | W11344874 | Assembly, Cooling Fan (Replaces: W11131760) |
|
Immediately | $ 191.74 | ||||
| 31 | W11325604 | Inverter (Replaces: W11237240) |
|
Immediately | $ 283.48 | ||||
| 32 | W10769147 | Sealing, Lamp |
|
Immediately | $ 24.49 | ||||
| 33 | WPW10120235 | Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 7.32 | ||||
| 34 | W11208292 | Sensor, Termperature (Replaces: 241960100002) |
|
$ 162.14 | |||||
| 35 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 36 | W11700292 | Spring, Torsion (Replaces: 461967570351) |
|
$ 72.30 | |||||
| 37 | W11684510 | Support (Replaces: 461967750494) |
|
Immediately | $ 15.52 | ||||
| 38 | W11214480 | Arm, Sliding (Replaces: 461967750483) |
|
$ 100.54 | |||||
| 39 | W10460457 | Sensor, Humidity |
|
Immediately | $ 132.65 | ||||
| 40 | 461967754821 | Duct, Magnetron |
|
$ 87.16 | |||||
| 41 | W11715912 | Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 8.27 | ||||
| 42 | W11690594 | Screw (shoulder) (Replaces: 461967825781) |
|
$ 14.79 | |||||
| 8A | 461967017481 | Trim, Side (right) |
|
- |
