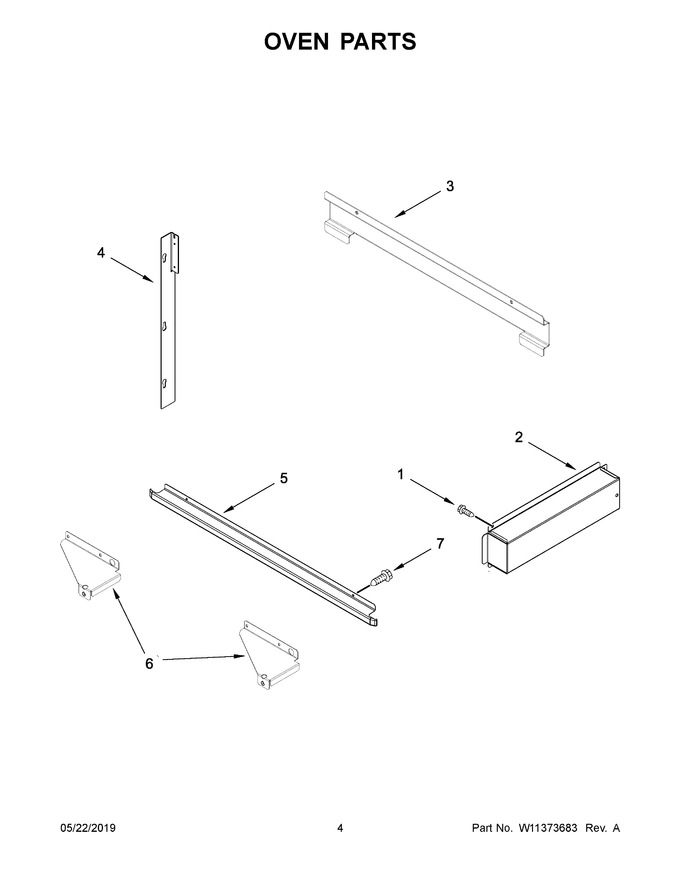

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
2	W10239155		Box, Conduit				$ 96.79
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 66.59
4	W10416256		Rail, Side (left)				$ 48.43
5	W11359268		Trim, Bottom (stainless)   (Replaces: W10420958)				$ 120.70
6	W10239156		Bracket, Lower (left)				$ 19.82
7	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 7.75
4A	W10416255		Rail, Side (right)				$ 44.95
6A	W10239157		Bracket, Lower (right)				$ 19.56
