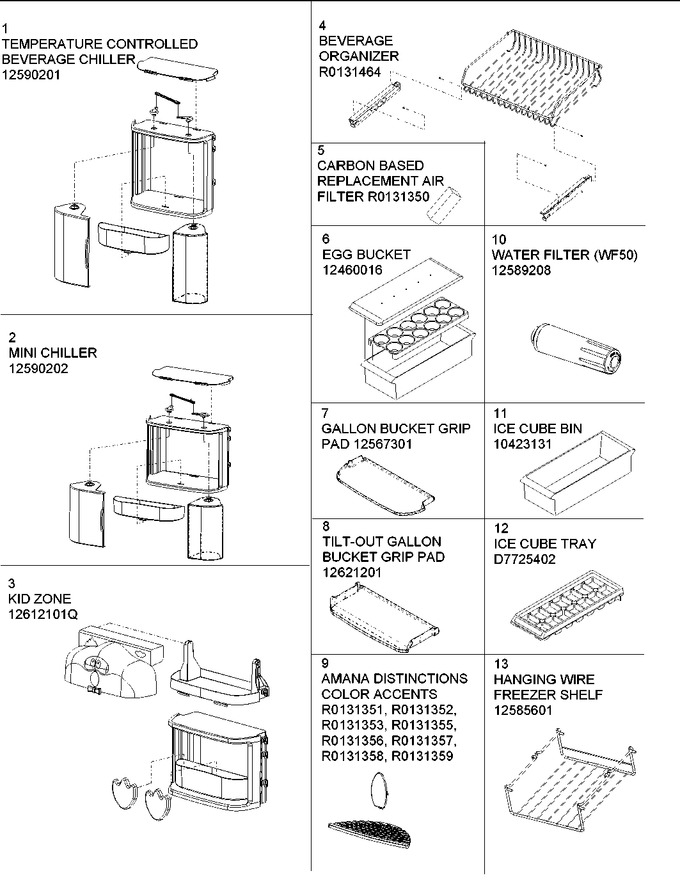

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12590201		Chiller Assy (large)		Appelez-nous	-
2	12590202		Chiller Assy (mini)		Appelez-nous	-
3	12612101Q		Assy,kid Zone		Appelez-nous	-
4	R0131464		Kit,can Rack		Appelez-nous	-
5	R0131350		Filter,ref Air(qty 2)				$ 2.67
6	12460016		Assy,egg Bkt W/ Lid		Appelez-nous	-
7	12567301		Grip Pad (gallon Bucket)		Appelez-nous	-
8	12621201		Grip Pad (tilt Bucket)		Appelez-nous	-
9	R0131355		Kit,handle/grille(spruce Green		Appelez-nous	-
9	R0131356		Kit,handle/grille(kiwi Green)		Appelez-nous	-
9	R0131358		Kit,handle/grille(brick Red)		Appelez-nous	-
9	R0131352		Kit,handle/grille(black)		Appelez-nous	-
9	R0131351		Kit,handle/grille(white)		Appelez-nous	-
9	R0131359		Kit,handle/grille(country Blue		Appelez-nous	-
9	R0131357		Kit,handle/grille(coral)		Appelez-nous	-
9	R0131353		Kit,handle/grille(bisque)		Appelez-nous	-
10	EDR4RXD1B		Net-water Filter(single)   (Replaces: 12589208)			Immediately	$ 49.99
11	10423131		Bin, Utility				$ 31.13
12	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 45.56
13	12585601		Shelf, Hanging Wire		Appelez-nous	-
