Diagram # Part Number Description Series Availability Ships Price Add to Cart
42 12582101 Shelf, Quick Chill Appelez-nous -
43 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.95

63 12576403 Clip, Door Handle Appelez-nous -
82 12571201 Cover, Control Appelez-nous -
92 12620901 Knob, Control Appelez-nous -
93 12273808 Retainer, Trim Appelez-nous -
102 12620902 Knob, Control Appelez-nous -
122 EDR4RXD1B Net-water Filter(single)   (Replaces: 12589201) In-Stock Immediately $ 49.99

132 Y12528501 Nameplate (amana Plus) In-Stock Immediately $ 59.75

172 12567301 Grip Pad (gallon Bucket) Appelez-nous -
182 12602907 Cover, Light Appelez-nous -
192 12621201 Grip Pad (tilt Bucket) Appelez-nous -
202 12677801 Lens, Light Appelez-nous -
242 12572801 Control, Chiller Appelez-nous -
252 12572901 Grille,chiller Cont-b/b Appelez-nous -
272 12571604 Front, Ice Bucket Appelez-nous -
312 M0231426 Screw Appelez-nous -
352 12478101 Tray, Dairy Appelez-nous -
362 12478003 Door, Dairy Appelez-nous -
382 12590201 Chiller Assy (large) Appelez-nous -
402 12591001BQ Assy, Toe Grille (blk) Appelez-nous -
412 12561901B Cover, Lwr Hinge (blk) Special Order $ 11.62

422 12575010 Tech Sheet-s X S Refrig Xxno Appelez-nous -
442 12576701B Handle, Door (blk) Appelez-nous -
452 12575901B Trim, Handle (blk) Appelez-nous -
671 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.00

691 12624801 Box, Defrost Control Appelez-nous -
701 12624901 Cover, Defrost Control Appelez-nous -
711 WP12566102 Board, Adaptive Defrost   (Replaces: 12566102) Special Order $ 350.29

721 12571701 Control, Damper Special Order $ 107.01

731 12558004 Bracket, Control Appelez-nous -
741 WP12351006 Control, Fz Temp   (Replaces: 12351006) Special Order $ 208.11

761 12571801 Extension, Knob Appelez-nous -
781 12582801 Gasket, Damper Special Order $ 7.62

801 12604201 Insulation, Damper Appelez-nous -
811 10383201 Gasket, Damper Appelez-nous -
821 12582901 Gasket, Control Cover Special Order $ 5.51

NI 12672901 Harness, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

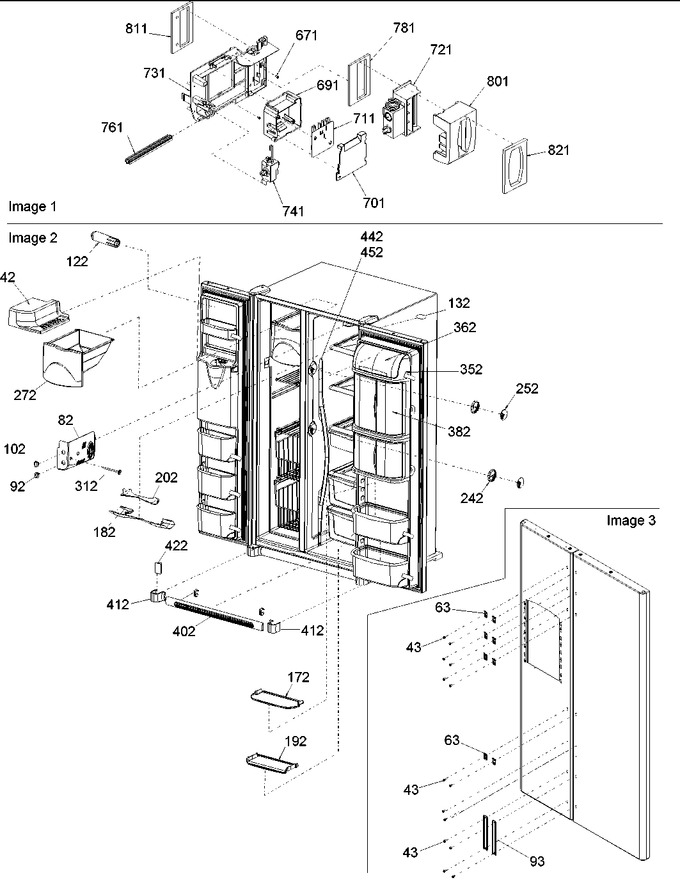

Diagram for ARSE66MBB (BOM: PARSE66MBB0)
