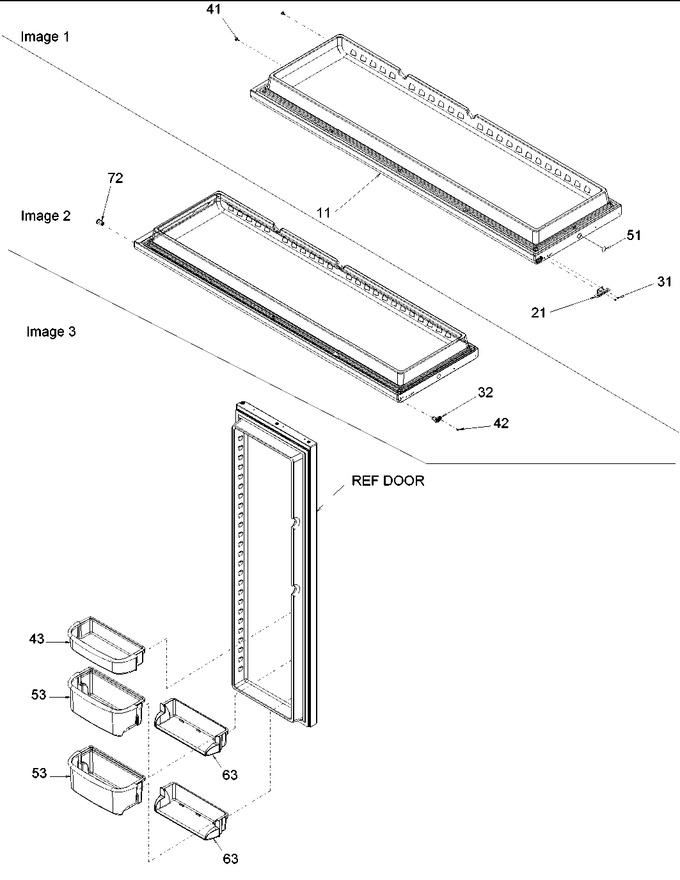

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12584701BQ		Ref Dr Foam Assy (blk)		Appelez-nous	-
21	12636401B		Stop, Door (blk)				$ 10.80
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.19
41	M0311604		Plug, Button (blk)		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
43	12556401		Bucket, Gallon		Appelez-nous	-
51	A3080001		Plug, Button (blk)		Appelez-nous	-
53	12568601		Bucket, Gallon Tilt		Appelez-nous	-
63	12568801		Frame, Tilt Bucket		Appelez-nous	-
72	10961002		Bushing, Door (blk)		Appelez-nous	-
