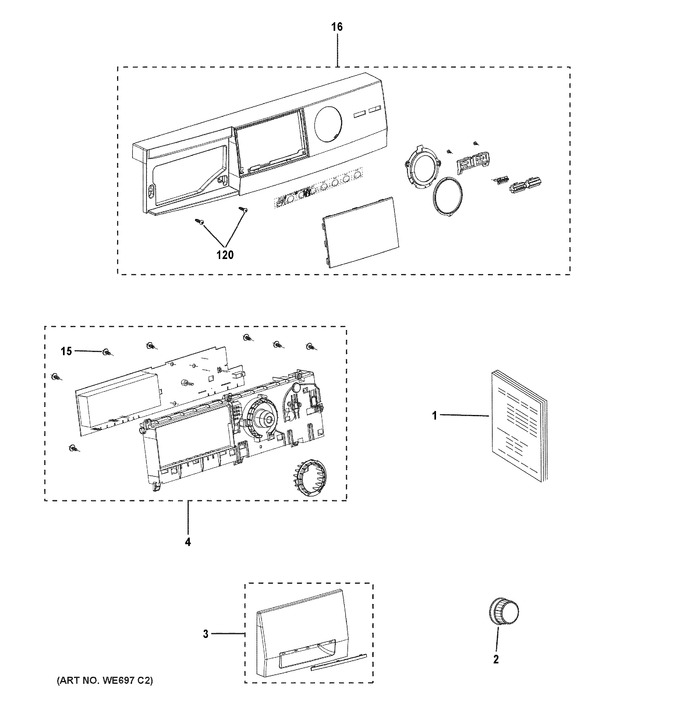

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90571 | Pm Manual Use And Care |
|
- | |||||
| 1 | 31-16914 | Pm Sheet Mini Manual |
|
- | |||||
| 2 | WH11X26254 | Cycle Select Knob |
|
- | |||||
| 3 | WE20X28582 | Condenser Tank Front Panel |
|
- | |||||
| 4 | WE04X28522 | User Interface Board Asm |
|
- | |||||
| 15 | WH02X26155 | Tapping Screw |
|
- | |||||
| 16 | WE04X28585 | Control Panel Assembly |
|
- | |||||
| 120 | WR01X27790 | Screw |
|
- | |||||
| 999 | 49-90571 | Pm Manual Use And Care |
|
- | |||||
| 999 | 31-3000042 | Pm Mini Manual |
|
- |
