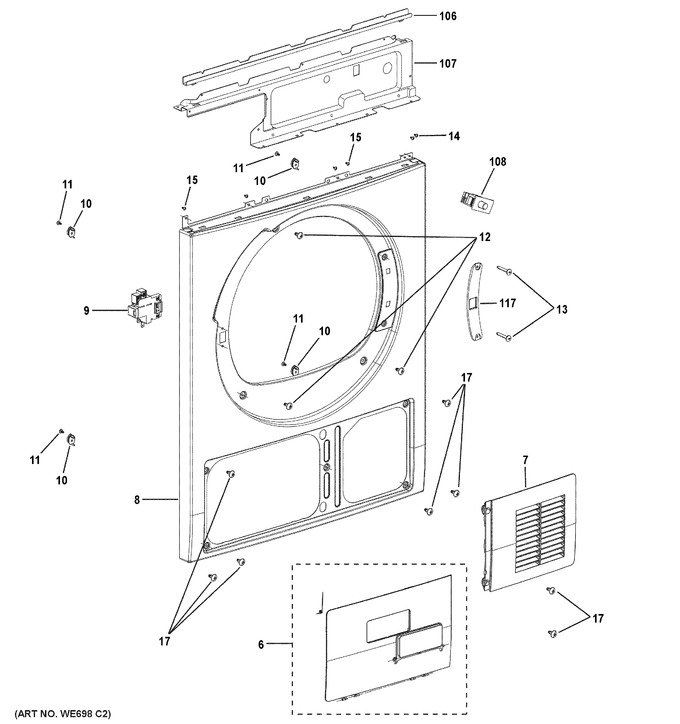

Blower, Motor & Condenser Assembly


Cabinet & Top Panel


Controls


Door


Drum


Front Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WE01X29797		Condenser Access Panel Door		Appelez-nous	-
6	WE01X27502		Condenser Access Panel Door		Appelez-nous	-
7	WE20X27503		Condenser Inlet Vent Panel		Appelez-nous	-
8	WE20X27504		Front Panel		Appelez-nous	-
9	WE01X26341		Door Lock		Appelez-nous	-
10	WE13X26339		Guide Post		Appelez-nous	-
11	WE02X26340		Screw		Appelez-nous	-
12	WE02X26338		Front Panel Screws		Appelez-nous	-
13	WE02X27505		Hinge Screw		Appelez-nous	-
14	WH02X26267		Screw St3.5*12		Appelez-nous	-
15	WH02X26155		Tapping Screw		Appelez-nous	-
17	WH02X26247		Screw				$ 1.71
106	WE01X27779		Water Channel		Appelez-nous	-
107	WE01X27780		Control Panel Mounting Bracket		Appelez-nous	-
108	WE01X27781		Door Switch		Appelez-nous	-
117	WE10X28517		Hinge Hole Cover		Appelez-nous	-
