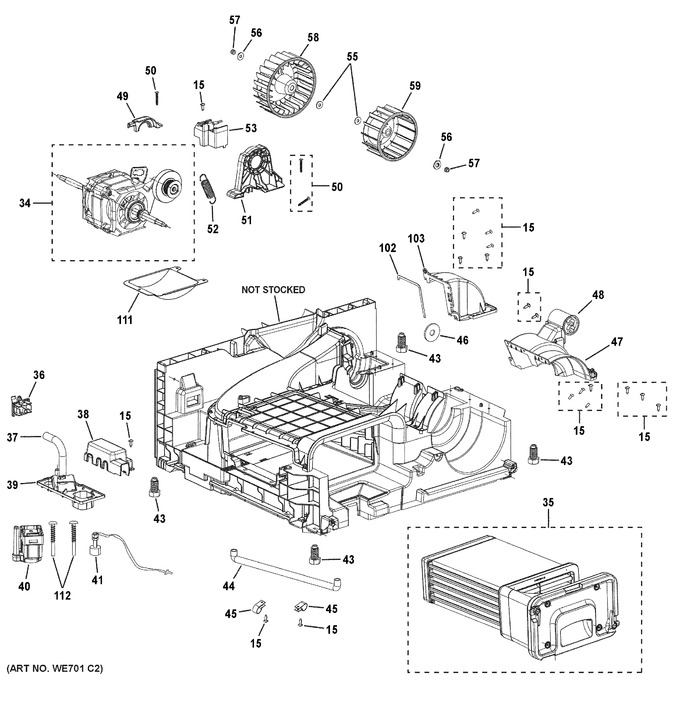

Blower, Motor & Condenser Assembly


Cabinet & Top Panel


Controls


Door


Drum


Front Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	WH02X26155		Tapping Screw		Appelez-nous	-
34	WE17X26577		Motor Asm		Appelez-nous	-
35	WE01X26382		Condenser		Appelez-nous	-
36	WE01X26375		External Drain Hose Conector		Appelez-nous	-
37	WE01X26376		Internal Drain Hose		Appelez-nous	-
38	WE01X26374		Pump Cover		Appelez-nous	-
39	WE13X26377		Pump Bracket Plastic		Appelez-nous	-
40	WE01X26378		Drain Pump		Appelez-nous	-
41	WE01X26379		Float Switch		Appelez-nous	-
43	WE02X27510		Leveling Leg		Appelez-nous	-
44	WE01X26381		Over Flow Tube		Appelez-nous	-
45	WE01X26380		Over Flow Tube Strap		Appelez-nous	-
46	WE01X28580		Motor Shaft Felt		Appelez-nous	-
47	WE16X26372		Condenser Blowwer Wheel Cover		Appelez-nous	-
48	WE01X26354		Capacitor		Appelez-nous	-
49	WE01X27511		Rear Motor Support		Appelez-nous	-
50	WE02X26358		Motor Bolts		Appelez-nous	-
51	WE17X27512		Front Motor Support		Appelez-nous	-
52	WE01X28583		Motor Tension Spring		Appelez-nous	-
53	WE02X26356		Belt Switch Mounting Bracket		Appelez-nous	-
55	WE02X26368		Outer Flat Washer		Appelez-nous	-
56	WE02X26367		Inner Flat Washer		Appelez-nous	-
57	WE02X26366		Fan Nut		Appelez-nous	-
58	WE11X26363		Blower Wheel Heater		Appelez-nous	-
59	WE16X26371		Blower Wheel Condenser		Appelez-nous	-
102	WE09X26362		Blower Cover Foam Gasket		Appelez-nous	-
103	WE16X26361		Heater Blower Wheel Cover		Appelez-nous	-
111	WE01X28080		Motor Protect Metal		Appelez-nous	-
112	WE01X28581		Water Switch Protect Stainless		Appelez-nous	-
