SELECT A DIAGRAM

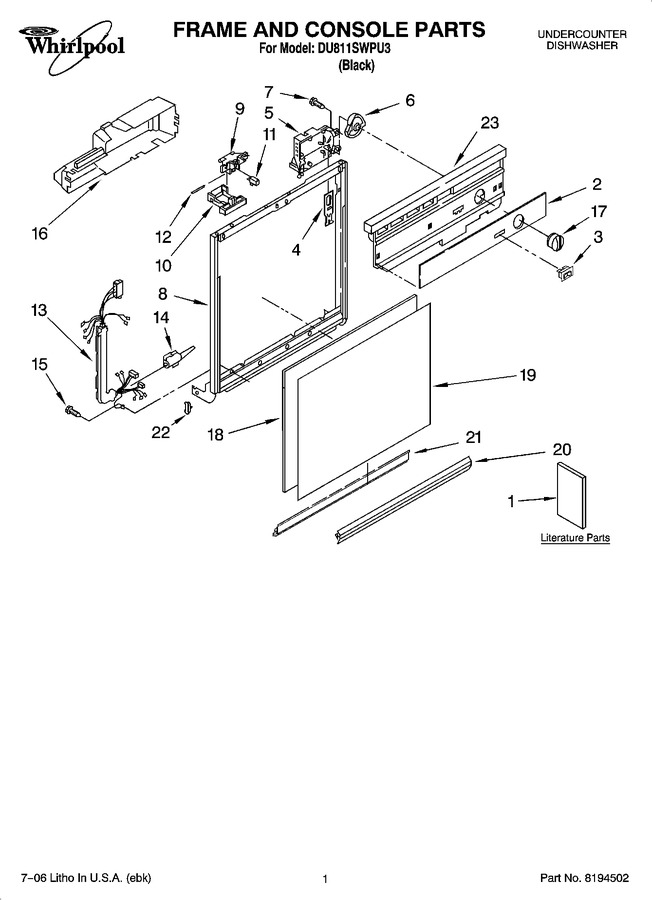

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535436		Instructions, Installation		Appelez-nous	-
1	3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
1	W10039850		Energy Guide		Appelez-nous	-
1	W10039800		Guide, Use & Care		Appelez-nous	-
1	677967		Do-it Yourself Manual		Appelez-nous	-
2	W10039510		Insert, Console (black)				$ 145.96
3	8051729		Switch, Rocker (black)				$ 81.19
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WPW10199588		Timer   (Replaces: W10039490)				$ 351.31
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 21)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3385500		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8051644		Cover, Control		Appelez-nous	-
17	8275308		Knob, Timer (black)				$ 75.05
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Front Panel (white/biscuit)   (Replaces: 8274853)				$ 59.42
19	WP3369769		Front Panel (almond/black)   (Replaces: 3369516)				$ 59.42
20	3374010		Retainer, Panel (black)				$ 40.68
21	WP3374716		Channel, Retainer (also Order Item 20)   (Replaces: 3374716)				$ 100.22
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
23	W10072730		Console (includes Item 2) (black Refer To Dishwasher Replacement Panel Parts List No. 678345)				$ 252.12
