01 - Frame And Console Parts


02 - Inner Door Parts

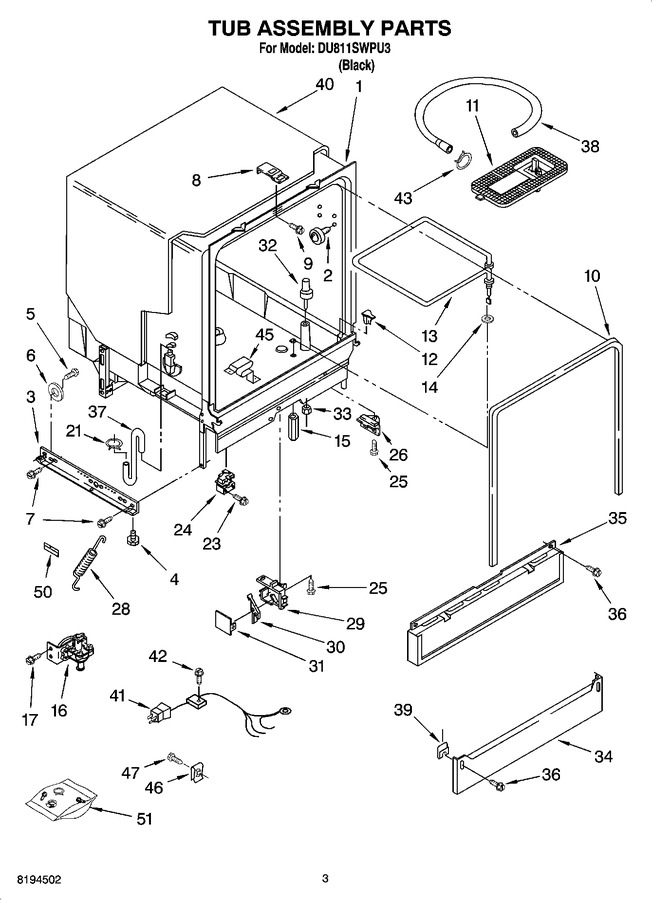

03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8533815		Tub Assembly		Appelez-nous	-
2	WP8528831		Tub, Wheel Assembly (8)   (Replaces: 8528831)			Immediately	$ 19.58
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 99.06
12	WP8528862		Deflector (2)   (Replaces: 8528862)				$ 63.90
13	WPW10082894		Heater (includes Item 14)   (Replaces: 8519827)				$ 141.52
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	WPW10477552		Nut (2) (heater Terminal)   (Replaces: 8268548)			Immediately	$ 8.23
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 96.30
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
21	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
23	WP489128		Screw   (Replaces: 3370225)				$ 11.40
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 81.57
28	3373228		Spring, Door (2)				$ 24.53
29	8318218		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	8318219		Cover, Switch Housing				$ 14.53
32	WP8519552		Float   (Replaces: 8519552)				$ 124.92
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel (includes Item 20) (black)		Appelez-nous	-
35	3374730		Panel, Access (black (with Clip Assembly))				$ 68.75
36	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Drain Hose   (Replaces: 3374077)			Immediately	$ 102.23
39	3378123		Clip, Grounding				$ 7.79
40	W11086533		Sound Shield   (Replaces: 8573243)			Immediately	$ 31.30
41	3379198		Cord, Power		Appelez-nous	-
42	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
43	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
45	3379740		Support, Heater				$ 51.56
46	3371881		Nut, Tinnerman		Appelez-nous	-
47	WP681414		Screw   (Replaces: 3372525)			Immediately	$ 8.47
50	8052018		Friction Pad		Appelez-nous	-
51	3369816		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps				$ 34.93
