01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts

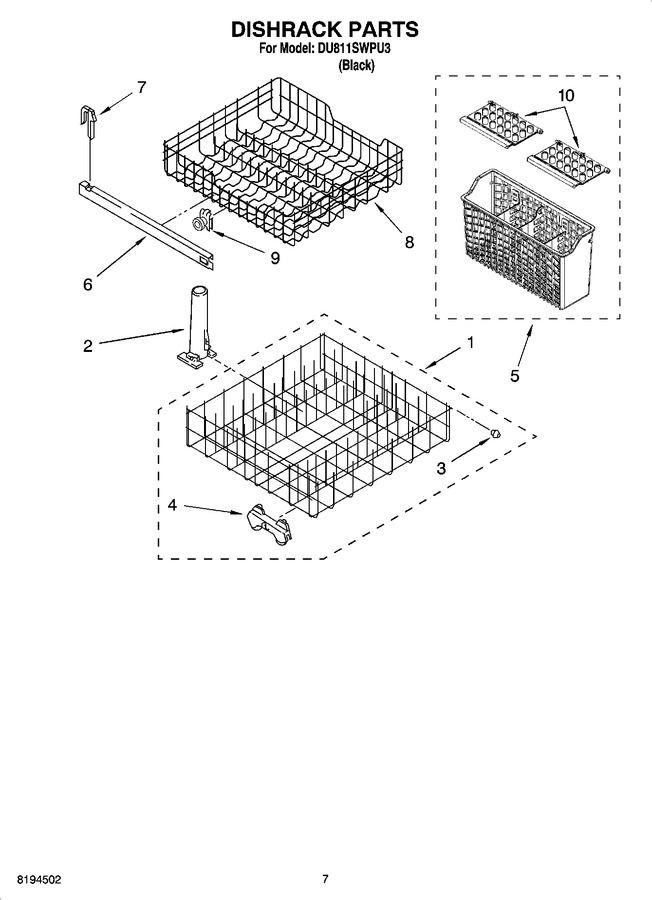

06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10161215		Lower Dishrack   (Replaces: 8539225)				$ 198.12
2	WP8268825		Tower, Protector   (Replaces: 8268825)				$ 108.90
3	WP3385142		Bumper, Dishrack (2)   (Replaces: 3385142)				$ 94.82
4	WP8268645		Wheel & Transport Assembly (4)   (Replaces: 8268645)			Immediately	$ 62.31
5	WP8539107		Basket, Silverware   (Replaces: 8539107)				$ 122.66
6	WP3385089		Track, Dishrack (2)   (Replaces: 3385089)			Immediately	$ 80.00
7	WP8565925		Stop, Track (4)   (Replaces: 8565920)			Immediately	$ 6.87
8	W11169039		Dishrack, Upper Assembly   (Replaces: 8539222)			Immediately	$ 203.14
9	WPW10204131		Wheel & Axle Assembly (4)   (Replaces: 8268852)			Immediately	$ 9.16
10	8539093		Lid, Silverware Basket		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4318050		Heavy Duty				$ 23.68
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	799340		Paint, Touch-up (1 Qt.) (black (uncut))		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 38.83
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 48.32
	4317925		Side Panel Kits (white)		Appelez-nous	-
	4317929		Side Panel Kits (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
