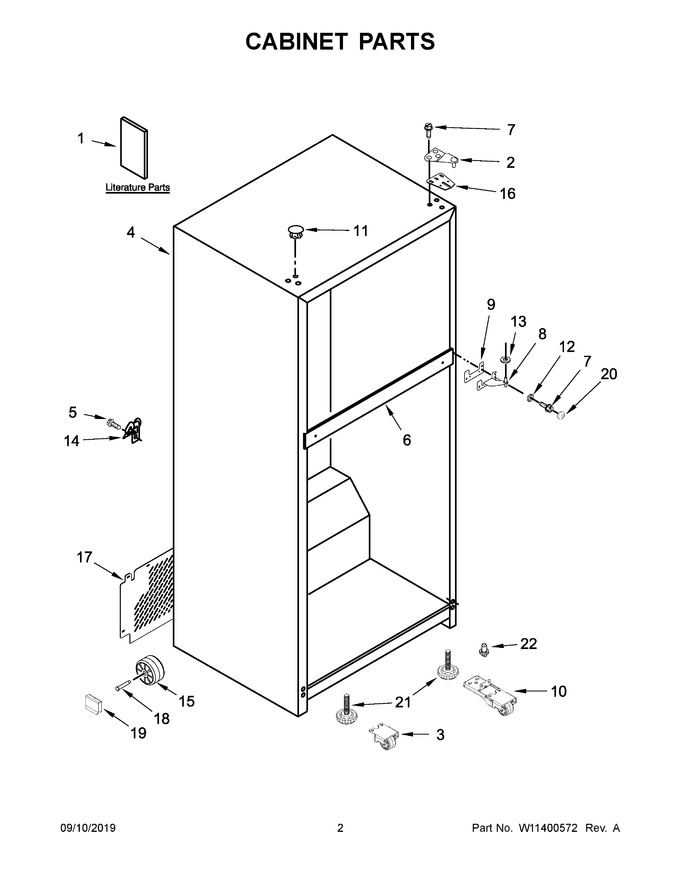

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11167018 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | W11256723 | Assembly, Roller (Replaces: W10842654) |
|
$ 90.42 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 87.64 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.65 | |||||
| 10 | W11096015 | Lower Hinge And Roller Assembly (Replaces: W10843861) |
|
Immediately | $ 90.42 | ||||
| 11 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 18.30 | ||||
| 12 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 10.73 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 13.39 | |||||
| 15 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 16 | W11169703 | Shim, Top Hinge (white) (Replaces: 2221885) |
|
$ 15.04 | |||||
| 17 | W11476772 | Cover, Unit (Replaces: W10633591) |
|
$ 41.43 | |||||
| 18 | W11594405 | Axle, Roller (Replaces: 981126) |
|
Immediately | $ 18.21 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.98 | |||||
| 20 | W10846529 | Cap, Dome (white) (Replaces: W10674771) |
|
Immediately | $ 18.88 | ||||
| 21 | W10854419 | Leveler (Replaces: W10671258) |
|
Immediately | $ 17.16 | ||||
| 22 | W11026307 | Hinge Pin (Replaces: W10638688) |
|
Immediately | $ 73.91 | ||||
| 11A | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 18.27 | |||||
| 11B | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 7.19 | ||||
| 1A | W10885250 | Use & Care Guide |
|
- | |||||
| 1B | W11095234 | Energy Guide |
|
- | |||||
| 20A | W10853677 | Cap, Dome (black) (Replaces: W10679135) |
|
$ 18.94 | |||||
| 20B | W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 18.30 |
