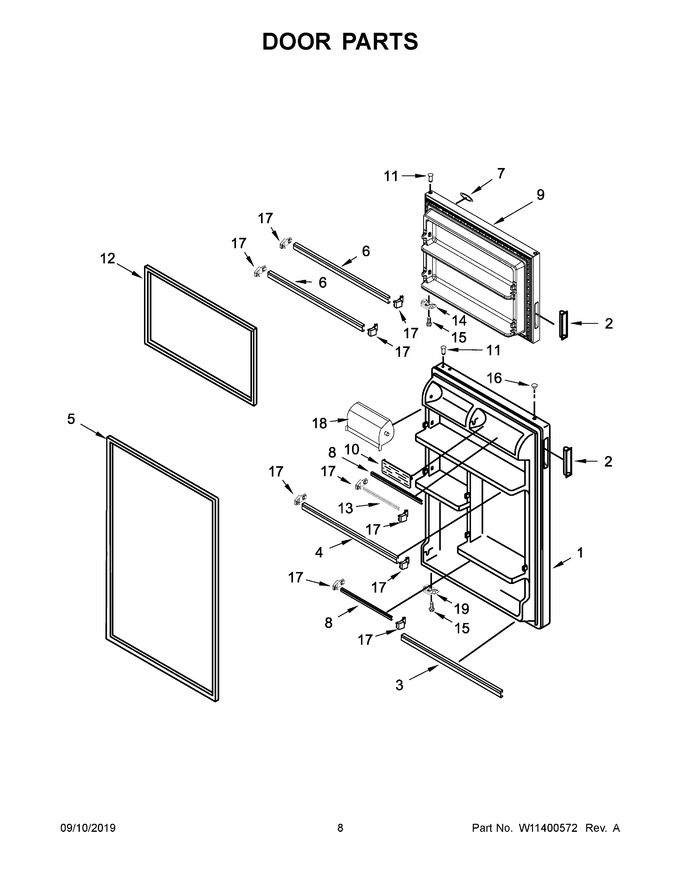

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10680726 | Refrigerator Door (includes Door Gasket & Door Cup) (white) (Replaces: W10680726) |
|
$ 729.74 | |||||
| 2 | W10352523 | Handle, Cup (white) |
|
$ 25.20 | |||||
| 3 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 127.34 | ||||
| 4 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 127.34 | |||||
| 5 | W10838574 | Gasket, Door (white) (Replaces: W10638676) |
|
Immediately | $ 88.27 | ||||
| 6 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 12.30 | |||||
| 7 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 83.57 | |||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 127.34 | ||||
| 9 | LW10680729 | Freezer Door (includes Door Gasket & Door Cup) (white) (Replaces: W10680729) |
|
$ 691.34 | |||||
| 10 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 60.31 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 12 | W10861499 | Gasket, Door (white) (Replaces: W10638675) |
|
Immediately | $ 98.40 | ||||
| 13 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 127.34 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 16 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 19 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 68.81 | |||||
| 12A | W11229610 | Gasket, Door (black) (Replaces: W10667843) |
|
Immediately | $ 300.69 | ||||
| 12B | W11574983 | Gasket, Door (grey) (Replaces: W11030682) |
|
$ 92.37 | |||||
| 16A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 16B | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 1A | LW10680725 | Refrigerator Door (includes Door Gasket & Door Cup) (black) (Replaces: W10680725) |
|
$ 721.90 | |||||
| 1B | LW10680727 | Refrigerator Door (includes Door Gasket & Door Cup) (stainless) (Replaces: W10680727) |
|
$ 847.16 | |||||
| 2A | W10174743 | Handle, Cup (black) |
|
$ 15.93 | |||||
| 2B | W11395913 | Handle, Cup (grey) (Replaces: W10240002) |
|
$ 51.52 | |||||
| 5A | W11240749 | Gasket, Door (black) (Replaces: W10678768) |
|
Immediately | $ 300.69 | ||||
| 5B | W11784834 | Gasket, Door (grey) (Replaces: W11030683) |
|
Immediately | $ 223.35 | ||||
| 7A | W11318226 | Badge (black) (Replaces: W11046243) |
|
$ 84.37 | |||||
| 7B | W11182143 | Badge (stainless) (Replaces: W11046241) |
|
$ 80.27 | |||||
| 9A | LW10680728 | Freezer Door (includes Door Gasket & Door Cup) (black) (Replaces: W10680728) |
|
$ 691.99 | |||||
| 9B | LW10680730 | Freezer Door (includes Door Gasket & Door Cup) (stainless) (Replaces: W10680730) |
|
$ 771.69 |
