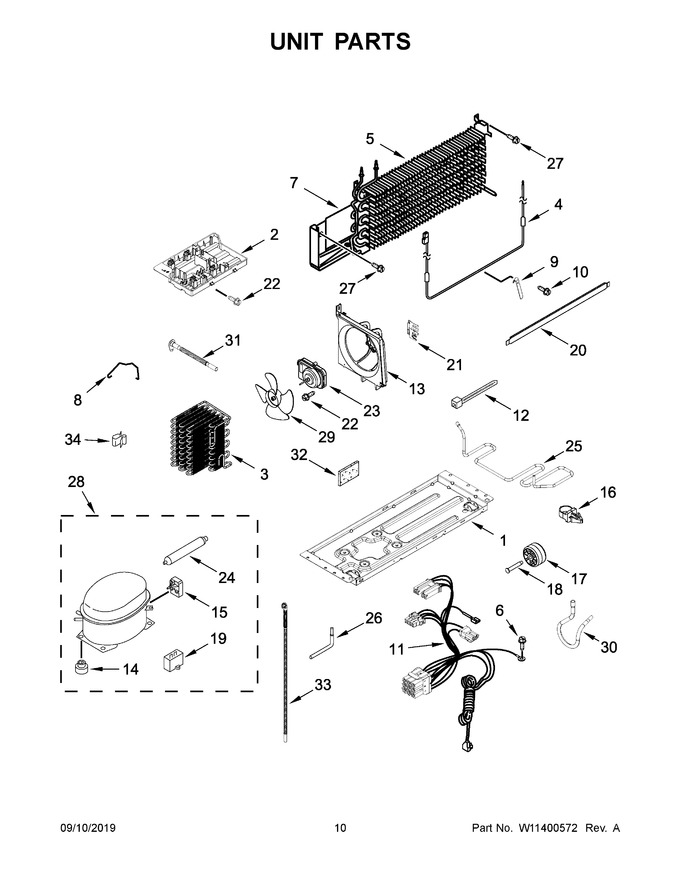

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624648 | Support Plate, Compressor (Replaces: W10638694) |
|
$ 101.99 | |||||
| 2 | W10633582 | Tray, Evaporator |
|
$ 93.87 | |||||
| 3 | W11803146 | Condenser (Replaces: W10633575) |
|
Immediately | $ 221.57 | ||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | W11407409 | Assembly, Evaporator (Replaces: W11103612) |
|
Immediately | $ 364.99 | ||||
| 6 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.89 | |||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 20.12 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 11 | W11611445 | Harness, Unit (Replaces: W11238433) |
|
Immediately | $ 82.19 | ||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | W11736795 | Bracket, Fan (Replaces: W10633579) |
|
Immediately | $ 71.48 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | W11092533 | Device, Start (Replaces: W10798748) |
|
Immediately | $ 100.03 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 20 | W10300902 | Cover, Heater |
|
$ 29.57 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 23.44 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 24 | W11490399 | Drier (Replaces: W11107829) |
|
$ 30.35 | |||||
| 25 | W11407404 | Tube, Discharge (Replaces: W11263831) |
|
$ 108.76 | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W11209866 | Compressor (Replaces: W11135151) |
|
Immediately | $ 390.80 | ||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 101.49 | ||||
| 30 | W11407403 | Tube, Suction (Replaces: W11087629) |
|
$ 63.87 | |||||
| 31 | W10646247 | Extension, Drain Tube |
|
$ 26.33 | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W10633573 | Tube, Drain |
|
Immediately | $ 35.19 | ||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| NI | N/P | Refrigerant Charge 4.2 Oz (r-134a) |
|
- | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 |
