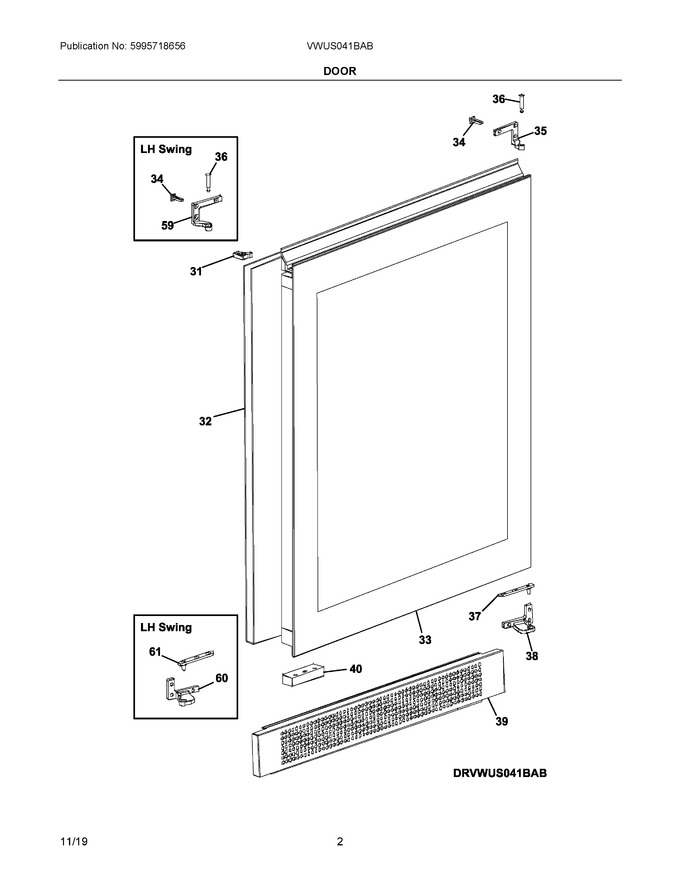

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304523208		Cover, Hinge Slot, Upper		Appelez-nous	-
32	5304522359		Gasket, Door, Black		Appelez-nous	-
33	5304523209		Door Assembly, Complete, Glass, Black		Appelez-nous	-
34	5304523210		Snap Joint, Door Axis		Appelez-nous	-
35	5304523211		Hinge, Door, Rh Upper		Appelez-nous	-
36	5304523213		Axis, Door		Appelez-nous	-
37	5304523214		Support, Door Hinge, Rh Lower		Appelez-nous	-
38	5304523215		Hinge, Door, Rh Lower		Appelez-nous	-
39	5304522366		Toe Grill, Stainless, Lower		Appelez-nous	-
40	5304523216		Cover, Hinge Area, Lower		Appelez-nous	-
59	5304523218		Hinge, Door, Lh Upper, (lh Swing)		Appelez-nous	-
60	5304523219		Hinge, Door, Lh Lower, (lh Swing)		Appelez-nous	-
61	5304523220		Support, Door Hinge, Lh Lower, (lh Swing)		Appelez-nous	-
NIA	5304523212		Cushion, Door Hinge, Upper		Appelez-nous	-
