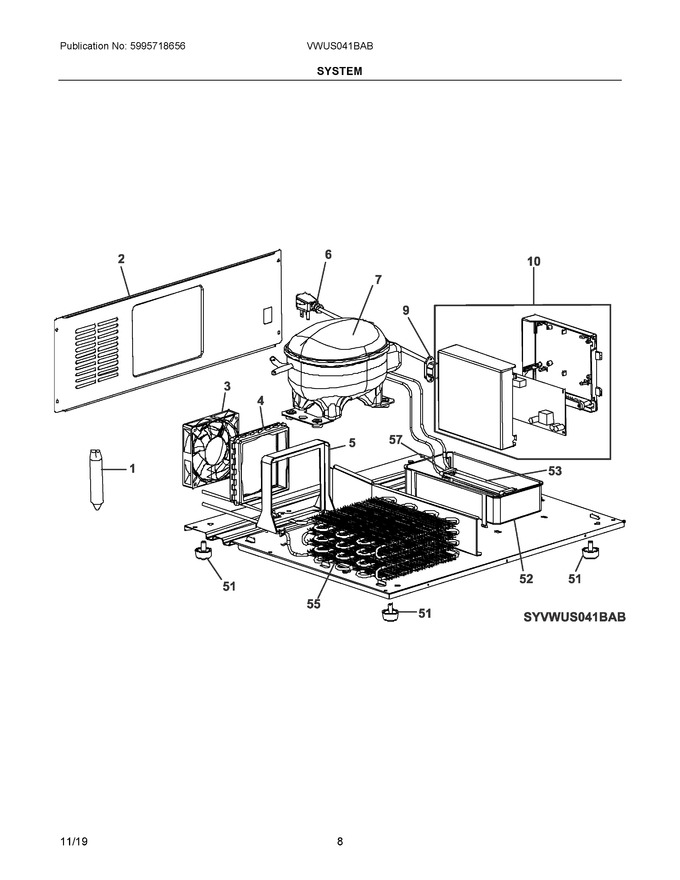

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304522396		Drier Assembly, Filter				$ 33.04
2	5304522397		Cover, Access, Rear		Appelez-nous	-
3	5304522398		Fan Assembly, Condenser				$ 117.13
4	5304522399		Sleeve, Cond Fan, Shock Proof		Appelez-nous	-
5	5304522400		Support, Cond Fan		Appelez-nous	-
6	5304522401		Power Cord, Elec Service		Appelez-nous	-
7	5304523193		Compressor, Assembly			Immediately	$ 687.48
9	5304523194		Receptacle, Power Cord		Appelez-nous	-
10	5304523359		Pc Board Assembly, Main, W/housing		Appelez-nous	-
51	5304522409		Leg, Cabinet				$ 10.11
52	5304522410		Drain Pan		Appelez-nous	-
53	5304522411		Tube, Connecting		Appelez-nous	-
55	5304522418		Condenser, Assembly				$ 124.71
57	5304522412		Clip, Silicon		Appelez-nous	-
NIA	5304522403		Tube, Process		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
