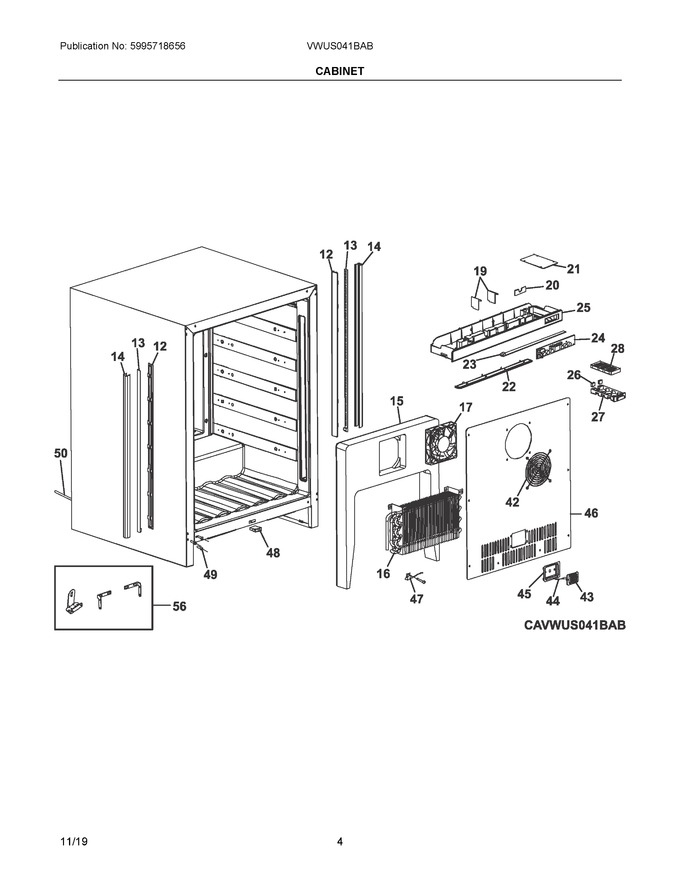

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304523195		Cover, Led Light, Sides		Appelez-nous	-
13	5304523196		Light Board, Led, Sides				$ 60.64
14	5304523197		Housing, Led Light, Sides		Appelez-nous	-
15	5304522368		Insulation, Air, Foam, Evap Cover		Appelez-nous	-
16	5304522369		Evaporator, Assembly				$ 172.57
17	5304522370		Fan Assembly, Evaporator				$ 107.02
19	5304523198		Support, Plate		Appelez-nous	-
20	5304523199		Plate, Magnet		Appelez-nous	-
21	5304523200		Cover, Filter Box		Appelez-nous	-
22	5304523201		Cover, Led Light, Top/mullion		Appelez-nous	-
23	5304523202		Light Board, Led, Top		Appelez-nous	-
24	5304523203		Pc Board, Display/ui		Appelez-nous	-
25	5304523358		Control Box, Assembly, W/overlay		Appelez-nous	-
26	5304523204		Magnet, Filter Box		Appelez-nous	-
27	5304523205		Housing, Filter Box		Appelez-nous	-
28	PAULTRA2		Air Filter, Wine Cabinet, Vintec   (Replaces: VCPAULTRA2)			Immediately	$ 27.73
42	5304522380		Cover, Evap Fan, Wire		Appelez-nous	-
43	5304522377		Cover, Sensor		Appelez-nous	-
44	5304522378		Sensor				$ 25.28
45	5304522379		Housing, Sensor, Metal		Appelez-nous	-
46	5304522371		Cover, Evaporator, Air Duct				$ 71.09
47	5304522670		Sensor Assembly, W/clamp-holder				$ 30.33
48	5304522384		Switch, Door				$ 19.38
49	5304522385		Button Plug, Black		Appelez-nous	-
50	5304522386		Tube, Suction		Appelez-nous	-
56	5304522674		Anti Tip Kit, Complete		Appelez-nous	-
