SELECT A DIAGRAM
01 - Cover Sheet

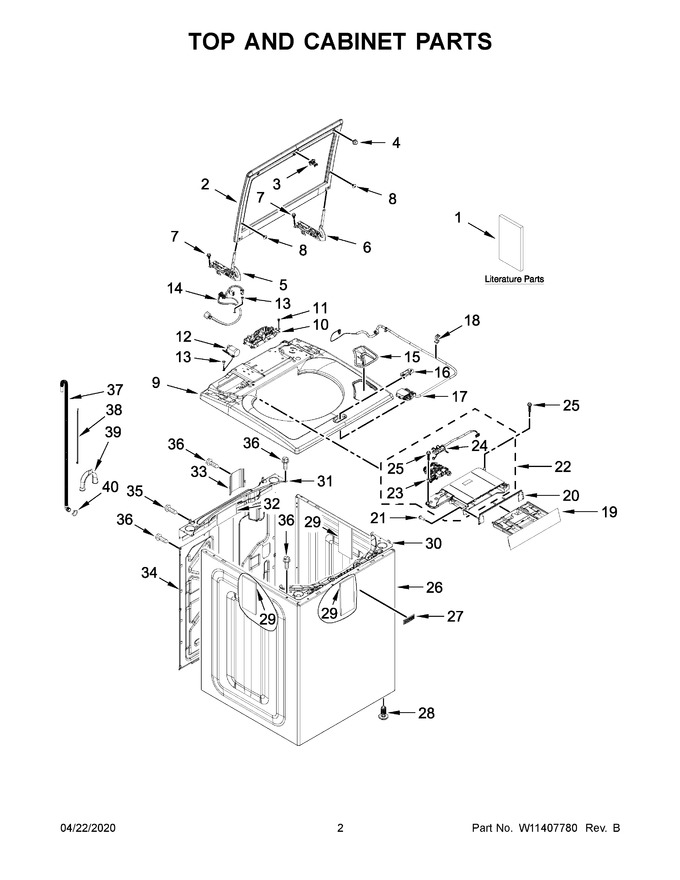

02 - Top And Cabinet Parts
03 - Console Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11197727 | Owners Manual |
|
- | |||||
| 2 | W11470212 | Assembly, Lid (glass) (tempest Grey) (Replaces: W11128271) |
|
Immediately | $ 356.83 | ||||
| 3 | W11457841 | Strike Assembly (Replaces: W11091027) |
|
Immediately | $ 25.77 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | W11551369 | Hinge, Lid (left) (Replaces: W11128305) |
|
Immediately | $ 114.96 | ||||
| 6 | W11551376 | Hinge, Lid (right) (Replaces: W11128306) |
|
Immediately | $ 121.92 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 14.99 | |||||
| 9 | W11423769 | Top (white) (Replaces: W11126896) |
|
$ 385.19 | |||||
| 10 | W11543994 | Control Unit Assembly, Machine And Motor (Replaces: W11284145) |
|
Immediately | $ 293.64 | ||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | W11614635 | Assembly, Line Filter (Replaces: W11033573) |
|
Immediately | $ 83.74 | ||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 41.51 | ||||
| 15 | W11175757 | Bezel, Bleach Dispenser (white) |
|
$ 30.24 | |||||
| 16 | W11545554 | Bezel, Lid Lock (white) (Replaces: W11215078) |
|
Immediately | $ 22.30 | ||||
| 17 | W11700916 | Assembly, Lid Lock (Replaces: W11032875) |
|
Immediately | $ 76.34 | ||||
| 18 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 19 | W10861667 | Assembly, Dispenser Drawer (white) (Replaces: W10794820) |
|
Immediately | $ 100.17 | ||||
| 20 | W10601845 | Assembly, Dispenser Bezel (white) (Replaces: W10601841) |
|
$ 42.59 | |||||
| 21 | W11700520 | Screw (Replaces: 3400061) |
|
$ 14.28 | |||||
| 22 | W11396714 | Assembly, Dispenser Housing & Inlet Valve (Replaces: W11198975) |
|
Immediately | $ 362.52 | ||||
| 23 | W11220230 | Valve, Water Inlet (Replaces: W11096268) |
|
Immediately | $ 143.95 | ||||
| 24 | W11198271 | Harness, Valve |
|
$ 168.98 | |||||
| 25 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 26 | W10676680 | Cabinet (white) |
|
$ 406.86 | |||||
| 27 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 28 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 14.24 | ||||
| 29 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 30 | W11695476 | Channel, Top Front (white) (Replaces: W11172902) |
|
$ 79.79 | |||||
| 31 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 32 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 33 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 34 | W11417171 | Panel, Rear (Replaces: W10612644) |
|
$ 277.67 | |||||
| 35 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 36 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 37 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 38 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 39 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 40 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 15A | W11175760 | Bezel, Bleach Dispenser (chrome Shadow) |
|
Immediately | $ 30.27 | ||||
| 16A | W11559688 | Bezel, Lid Lock (chrome Shadow) (Replaces: W11215091) |
|
Immediately | $ 30.29 | ||||
| 19A | W11803233 | Assembly, Dispenser Drawer (chrome Shadow) (Replaces: W11178180) |
|
Immediately | $ 57.00 | ||||
| 1A | W11197735 | Quick Reference Guide |
|
- | |||||
| 1B | W11197666 | Energy Guide |
|
- | |||||
| 1C | W11197707 | Tech Sheet |
|
- | |||||
| 1D | W11250100 | Wiring Diagram |
|
- | |||||
| 20A | W11218060 | Assembly, Dispenser Bezel (chrome Shadow) |
|
$ 29.11 | |||||
| 26A | W10676681 | Cabinet (chrome Shadow) |
|
$ 487.34 | |||||
| 30A | W11661767 | Channel, Top Front (chrome Shadow) (Replaces: W10724132) |
|
- | |||||
| 9A | W11423768 | Top (chrome Shadow) (Replaces: W11126897) |
|
$ 382.84 |
