View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts

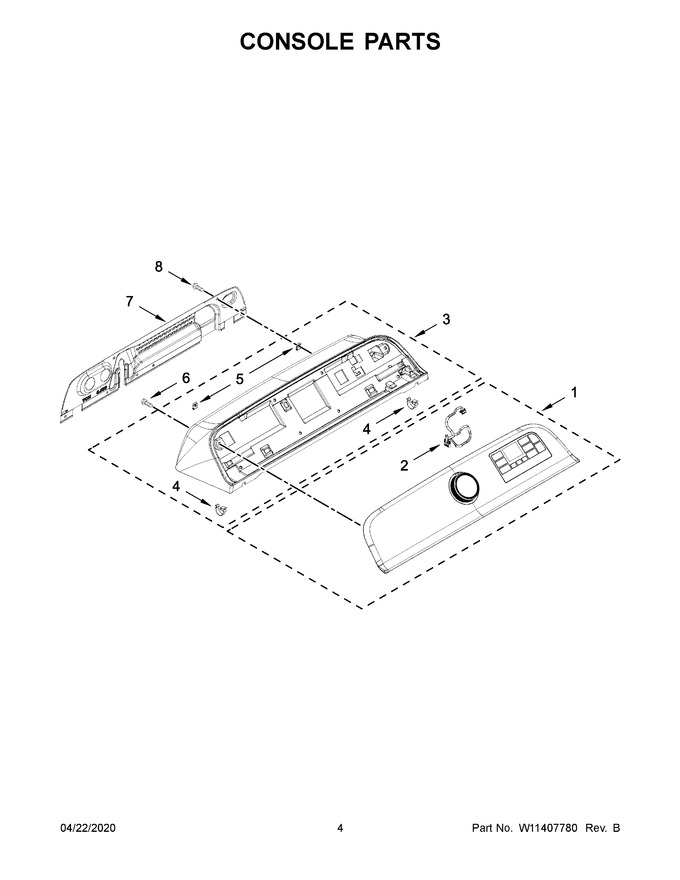

03 - Console Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11793906 | Assembly, Fascia (Replaces: W11130428) |
|
Immediately | $ 440.60 | ||||
| 2 | W11596129 | Harness, Ui (Replaces: W11232465) |
|
Immediately | $ 65.70 | ||||
| 3 | W11569437 | Assembly, Console (white) (Replaces: W11127499) |
|
Immediately | $ 149.65 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 7 | W11129559 | Panel, Console Rear |
|
$ 278.69 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 3A | W11519741 | Assembly, Console (chrome Shadow) (Replaces: W11128034) |
|
$ 229.36 |
