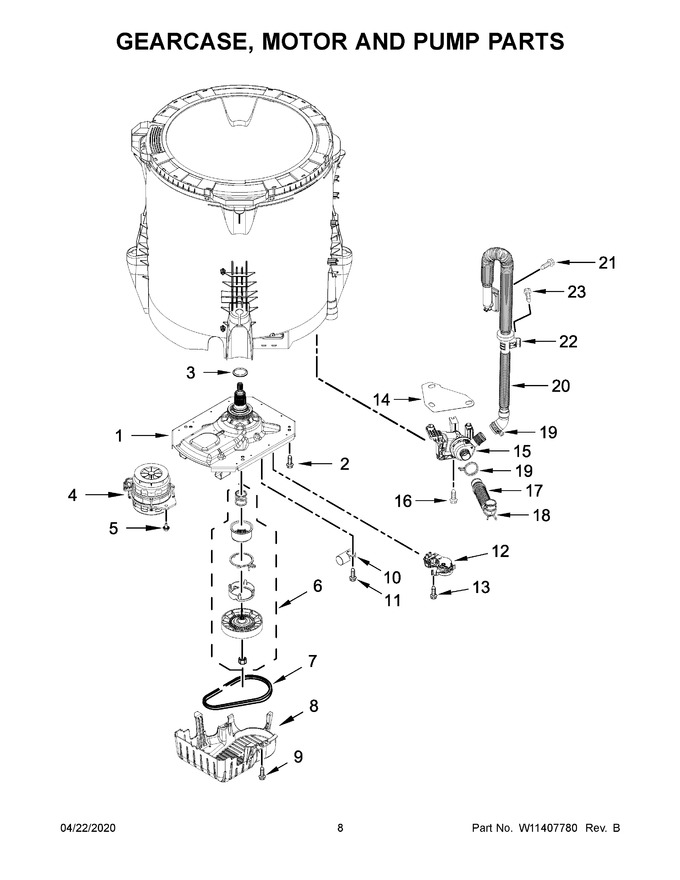

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449840		Gearcase Assembly   (Replaces: W11164183)			Immediately	$ 302.88
2	WPW10249633		Screw   (Replaces: W10249633)			Immediately	$ 7.55
3	W11553312		Washer, Thrust   (Replaces: W11218170)			Immediately	$ 15.79
4	W11026785		Motor, Drive   (Replaces: W10677723)			Immediately	$ 238.55
5	W11685857		Screw   (Replaces: W10094780)				$ 14.81
6	W10721967		Splutch Kit (60hz)			Immediately	$ 55.68
7	W11239857		Belt, Drive   (Replaces: W10808317)			Immediately	$ 52.43
8	W11409708		Shield, Pulley Cover   (Replaces: W11087188)			Immediately	$ 43.63
9	WP273556		Screw   (Replaces: 357640)			Immediately	$ 8.43
10	W11395618		Capacitor, Motor Run   (Replaces: W11162560)			Immediately	$ 108.62
11	WP489128		Screw   (Replaces: W10142728)				$ 11.40
12	W10913953		Actuator- Shift   (Replaces: W10815026)			Immediately	$ 69.79
13	W11596033		Screw   (Replaces: 9741052)				$ 14.23
14	W10894129		Shield, Heat		Appelez-nous	-
15	W11396717		Pump Assembly, Drain   (Replaces: W11263349)			Immediately	$ 193.68
16	WPW10004910		Screw   (Replaces: W10004910)				$ 8.39
17	W10802689		Hose, Tub To Pump   (Replaces: W10763259)				$ 34.64
18	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.81
19	WP285655		Clamp, Hose   (Replaces: W11375994)			Immediately	$ 8.81
20	W11553446		Hose, Internal Drain   (Replaces: W11291620)			Immediately	$ 50.48
21	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
22	W10652932		Clip, Hose				$ 42.99
23	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
