SELECT A DIAGRAM

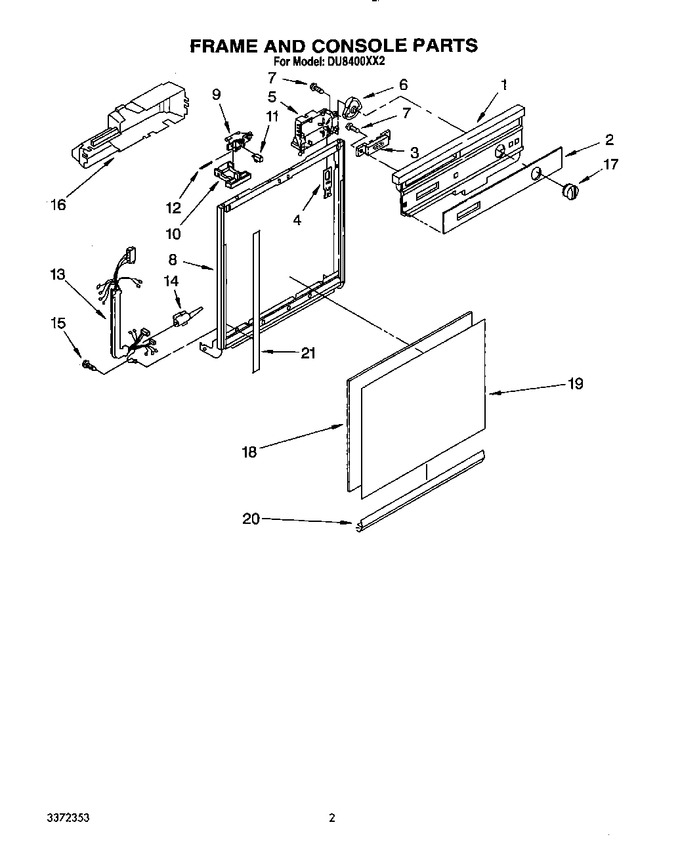

02 - Frame And Console


03 - Inner Door


04 - Tub Assembly, Lit/optional


05 - Pump And Spray Arm


06 - Pump And Motor, Miscellaneous


07 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3371833		Console (includes Item 2)		Appelez-nous	-
2	3371774		Insert, Console		Appelez-nous	-
3	3371804		Switch		Appelez-nous	-
4	3368997		Follower, Cam				$ 35.20
5	3369540		Timer		Appelez-nous	-
6	3368996		Cam		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	3368900		Door Frame		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 66.11
10	WP3368954		Lever, Latch   (Replaces: 3368954)				$ 8.70
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3372249		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 7.08
16	3369192		Cover, Timer		Appelez-nous	-
17	3368998		Knob, Timer				$ 54.55
18	3368979		Spacer				$ 38.99
19	WP3369769		Front Panel (white/black)   (Replaces: 3369769)				$ 59.42
19	3369851		Front Panel (almond)		Appelez-nous	-
20	3370441		Retainer, Panel				$ 39.48
21	3369586		Trim (2)				$ 39.57

    View Diagram in Separate Window       Print Part List
