02 - Frame And Console
03 - Inner Door
04 - Tub Assembly, Lit/optional
05 - Pump And Spray Arm

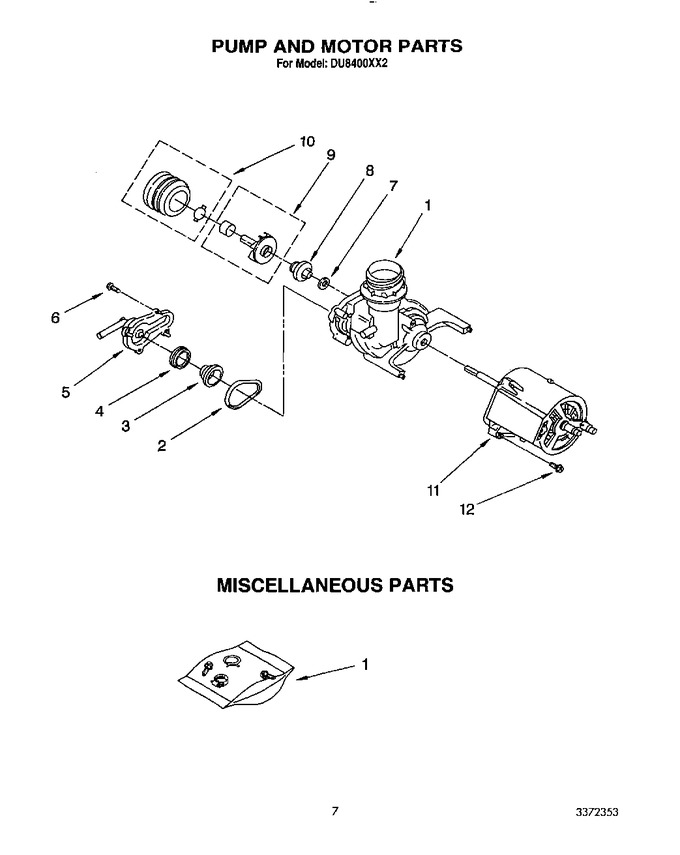

06 - Pump And Motor, Miscellaneous
07 - Dishrack
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3369011 | Housing Assembly (Replaces: 3369011) |
|
$ 141.27 | |||||
| 1 | 3369816 | Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps |
|
$ 34.93 | |||||
| 2 | 3369031 | Seal, Drain Cover |
|
$ 9.42 | |||||
| 3 | 3369028 | Diaphragm |
|
- | |||||
| 4 | 3369029 | Ring, Diaphragm |
|
$ 7.04 | |||||
| 5 | 3369030 | Cover, Drain Valve |
|
$ 24.55 | |||||
| 6 | WP3368921 | Screw (4) (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 7 | 3369020 | Seal Seat |
|
$ 7.86 | |||||
| 8 | WP3385557 | Seal Head (Replaces: 3369410) |
|
$ 111.69 | |||||
| 9 | 4386996A | Impeller & Bearing Assembly (Replaces: 3369013) |
|
Immediately | $ 129.47 | ||||
| 10 | WP3369012 | Disk & Mount Assembly (Replaces: 3369012) |
|
$ 97.43 | |||||
| 11 | 3372625 | Motor |
|
- | |||||
| 12 | 3368922 | Screw (3) |
|
- |
