View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Frame And Console
03 - Inner Door
04 - Tub Assembly, Lit/optional
05 - Pump And Spray Arm
06 - Pump And Motor, Miscellaneous
07 - Dishrack
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

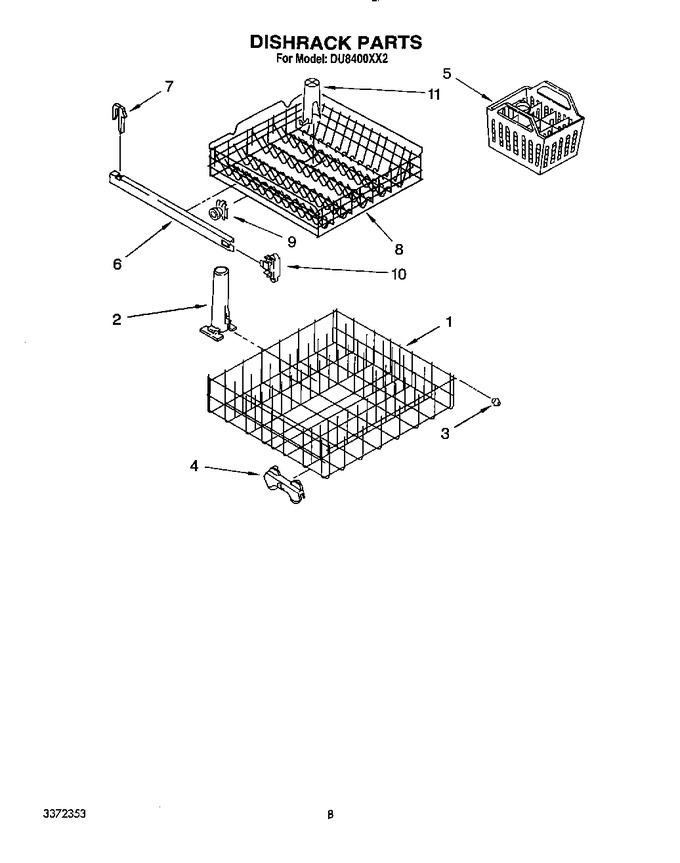

| 1 | W10161215 | Lower Dishrack Assembly (Replaces: 3368586) |
|
$ 198.12 | |||||
| 2 | WP8268825 | Tower, Protector (Replaces: 3368995) |
|
$ 108.90 | |||||
| 3 | 304490 | Bumper, Dishrack (2) |
|
- | |||||
| 4 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 98.69 | |||||
| 5 | 3368966 | Basket, Silverware |
|
- | |||||
| 6 | 3369071 | Track, Dishrack (2) |
|
- | |||||
| 7 | 3369046 | Stop, Track (2) |
|
- | |||||
| 8 | W11169039 | Dishrack, Upper (incl. Item 9) (Replaces: 3371653) |
|
Immediately | $ 203.14 | ||||
| 9 | 3371581 | Wheel & Axle Assembly (4) |
|
- | |||||
| 10 | 300845 | End Cap, Track (2) |
|
$ 7.63 | |||||
| 11 | 3371739 | Diffuser, Water |
|
- |
